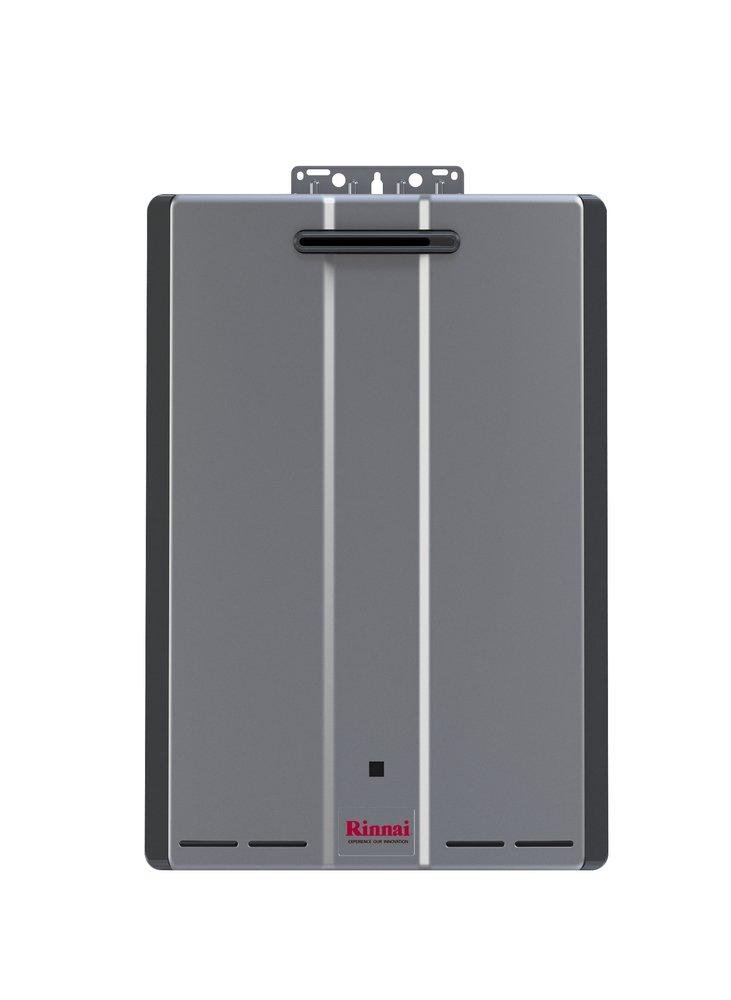

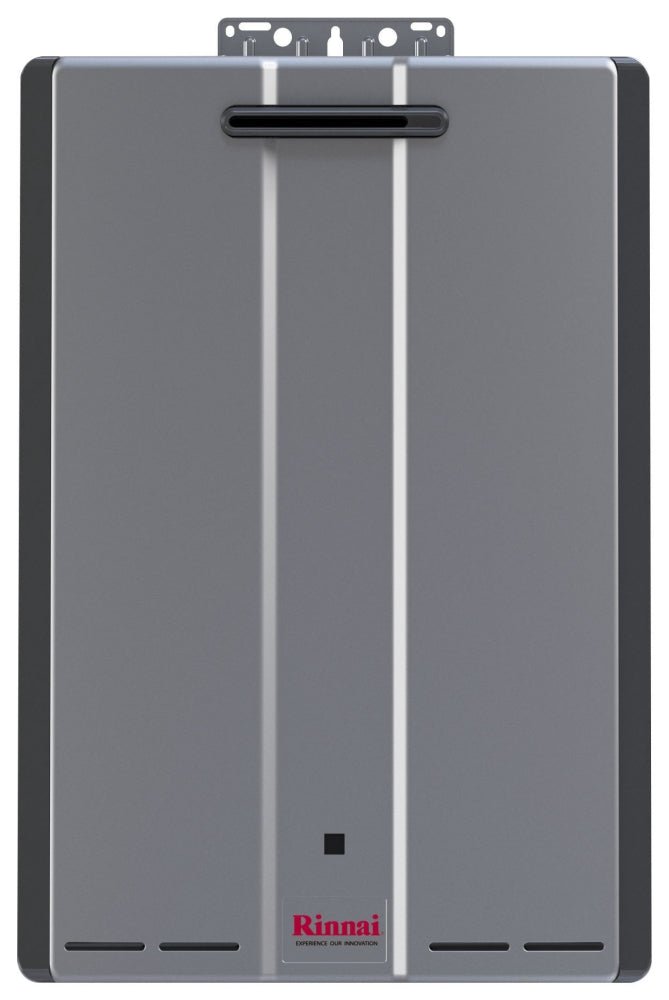

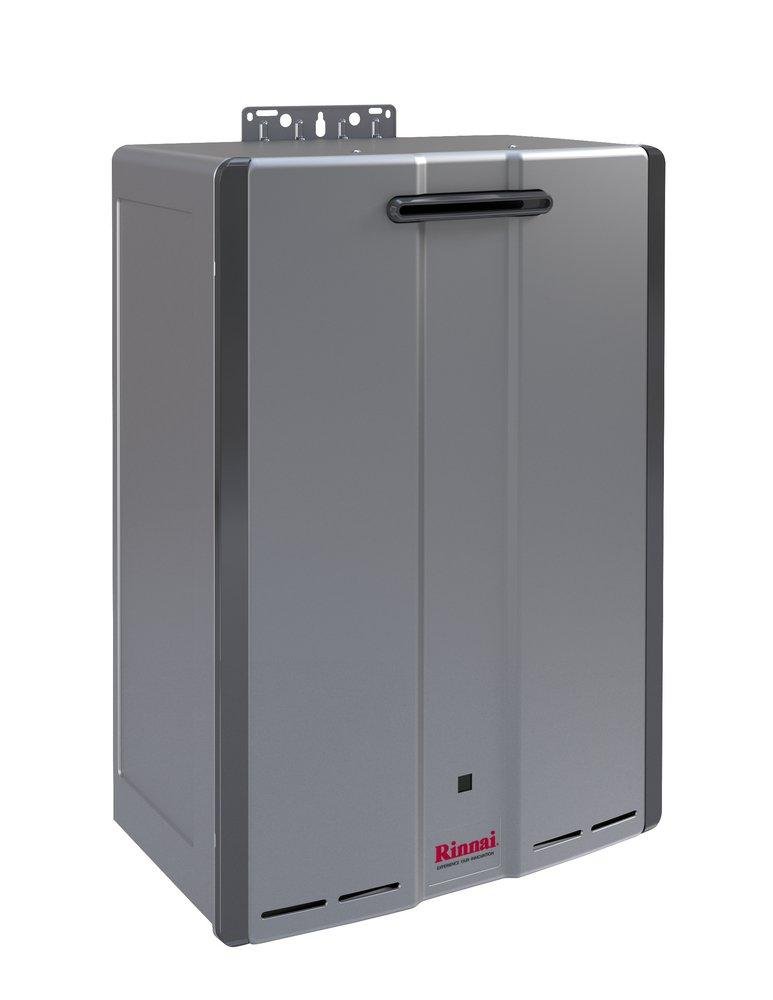

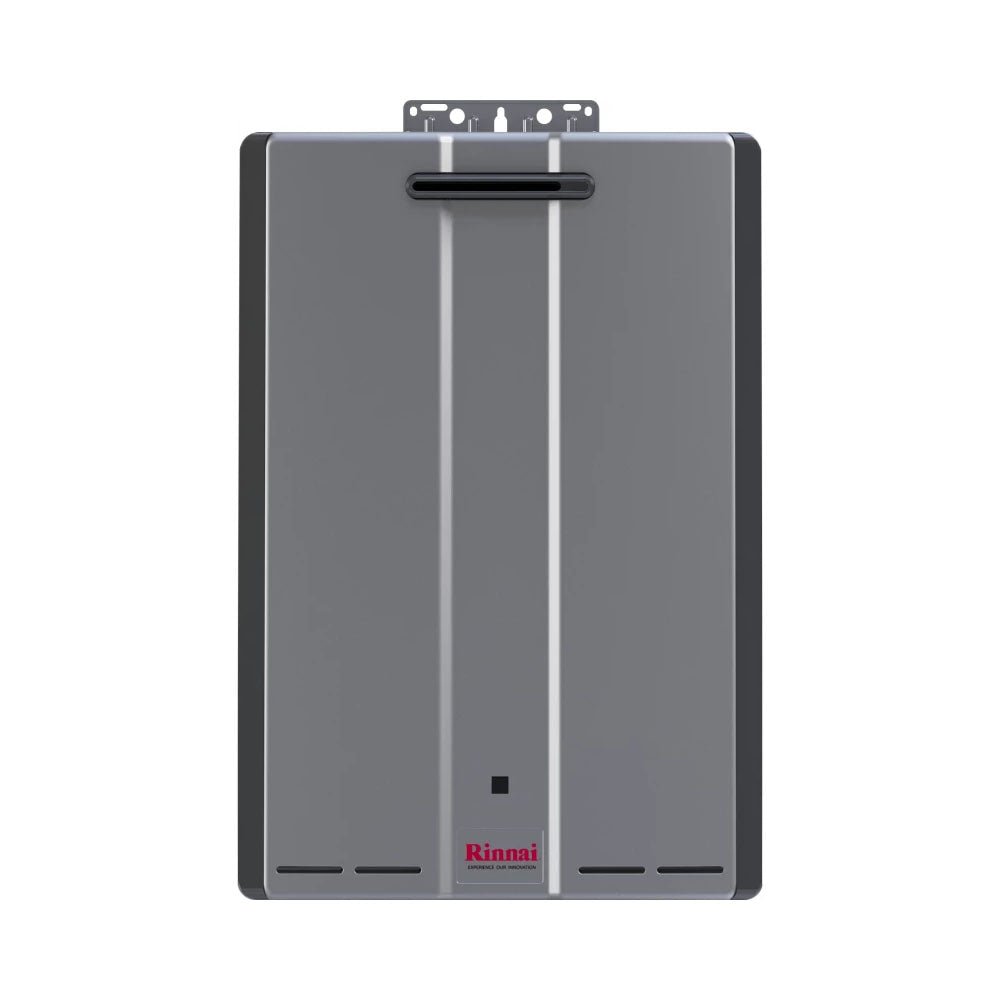

Rinnai RU199EP Sensei™ Residential 199,000 BTU Liquid Propane Tankless Water Heater Outdoor

Product Description

The Rinnai RU199EP Sensei™ tankless water heater raises the bar in tankless heating technology. Designed for simple installation and efficient performance, it features flexible venting options and corrosion-resistant stainless steel heat exchanger. This outdoor unit easily adapts to colder climates with freeze protection down to -4° F. It delivers continuous hot water for multiple applications.

• Continuous Water for Multiple Applications
• Energy Efficient Promise
• Wi-Fi Compatible

Product Highlights

The Rinnai Sensei RU199EP tankless water heater provides an endless supply of hot water with efficient performance and flexible venting.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: RU199EP
• Country of Origin: Japan

Technical Specifications

• Product Category: Water Heater – Tankless
• Type: Tankless Water Heater
• Fuel Type: Liquid Propane
• Installation Location: Outdoor
• Maximum Input Capacity (BTU/Hr): 199,000
• Product Depth: 11 19/48 Inches
• Product Width: 18 1/2 Inches
• CSA Listed: Yes
• Product Height: 26 19/48 Inches
• Frequency: 60 Hz
• Shipping Weight: 72 Pounds
• Medium: Hot Water
• Cold Water Inlet: 3/4 Inch
• Hot Water Outlet: 3/4 Inch
• AHRI Certified: Yes
• Vent Type: Outdoor (No Venting)
• Minimum Flow Rate: 0.4 GPM
• Gas Connection Size: 3/4 Inch
• Mount Type: Wall
• Application: Residential
• Product Line: Sensei
• Storage Type: Tankless
• Energy Star Listed: Yes
• Includes Pump: No
• Uniform Energy Factor: 0.92
• Maximum Input Capacity: 199000 BTU
• Minimum Input Capacity: 15000 BTU
• Combustion Type: Condensing
• Ultra Low NOx Emissions: Yes
• Parts Warranty: 5 Years
• AHRI Reference Number: 10595466
• Maximum Altitude: 10200 Feet
• Product Sub-line: Super High Efficiency Plus (SE+)
• Gas Conversion Kit: Not Available
• Heat Exchanger Warranty: 15 Years
• Flow Rate at 40F Temperature Rise: 9.8 GPM
• Flow Rate at 45F Temperature Rise: 8.4 GPM
• Flow Rate at 50F Temperature Rise: 7.6 GPM
• Flow Rate at 60F Temperature Rise: 6.4 GPM
• Flow Rate at 70F Temperature Rise: 5.5 GPM
• Applicable Standard: ANSI Z21.10.3, CSA 4.3, AHRI
• Electrical Input Supply Rating: 120 Volt AC at 60 Hertz, 12 Volt DC, 4 Amp, 81 Watt
• Energy Saver Conformance: Yes
• Gas Input Supply Rating: 15000 to 199000 BTU/Hour
• Gas Type: Liquid Propane
• Ignition Type: Direct Electronic
• Inclusions/Features: Automatic Frost Protection, Boiling Protection, Combustion Fan RPM Check, Flame Failure-Flame Rod, Over Current Glass Fuse, Remaining Flame, 22 AWG Non-Polarized 2-Core Cable, Integrated Controller, Water Flow Sensor, Electronic Water Control Device
• Inlet/Outlet Connection: 3/4 Inch Threaded x 3/4 Inch Threaded
• Options: Condensate Neutralizer, ScaleCutter, Drain Down Kit, Additional Controller, Recess Box, Pipe Cover, Recirculation Pump, DPS/MIS Switch, EZConnect Cable, Control-R Wi-Fi Module, Wireless Accessory
• Relief Valve Details: Isolation and Pressure Relief Valve Supplied
• Tank Dimensions: 18.5 Inch Width x 11.45 Inch Depth x 26.4 Inch Height
• Temperature Rating: 98 to 140 Deg F
• Brand Name: SENSEI
• Series/Model: RU199
• Energy Factor: 0.96
• Voltage: 120v
• BTU (Max): 199000
• BTU (Min): 15000
• Depth (Inches): 11.4″
• Gas Connection: 3/4″
• Width (Inches): 18-1/2″
• Height (Inches): 26.4″
• Flow Range (GPM): 0.26 – 9.8
• Temperature Range (F): 98°F to 120°F
• Cold Water Inlet (NPTM): 3/4″
• Hot Water Outlet (NPTF): 3/4″
• Wifi: Yes
• Residential/Commercial: Residential
