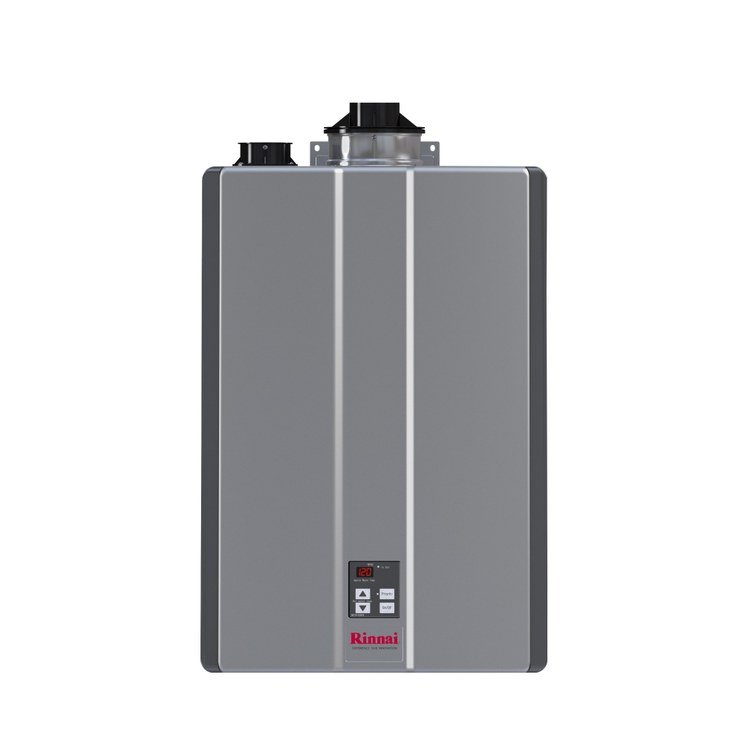

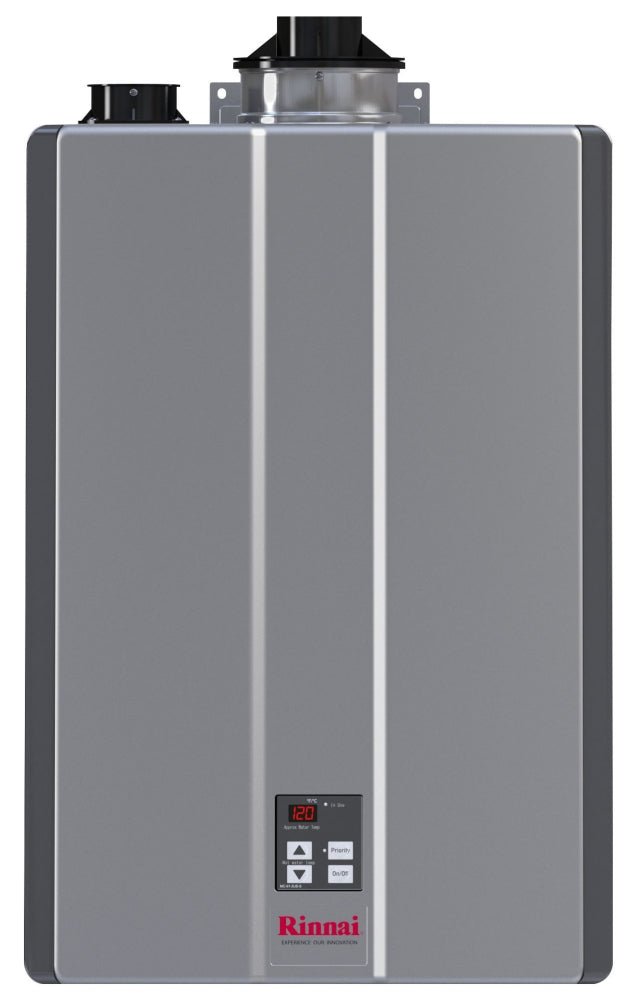

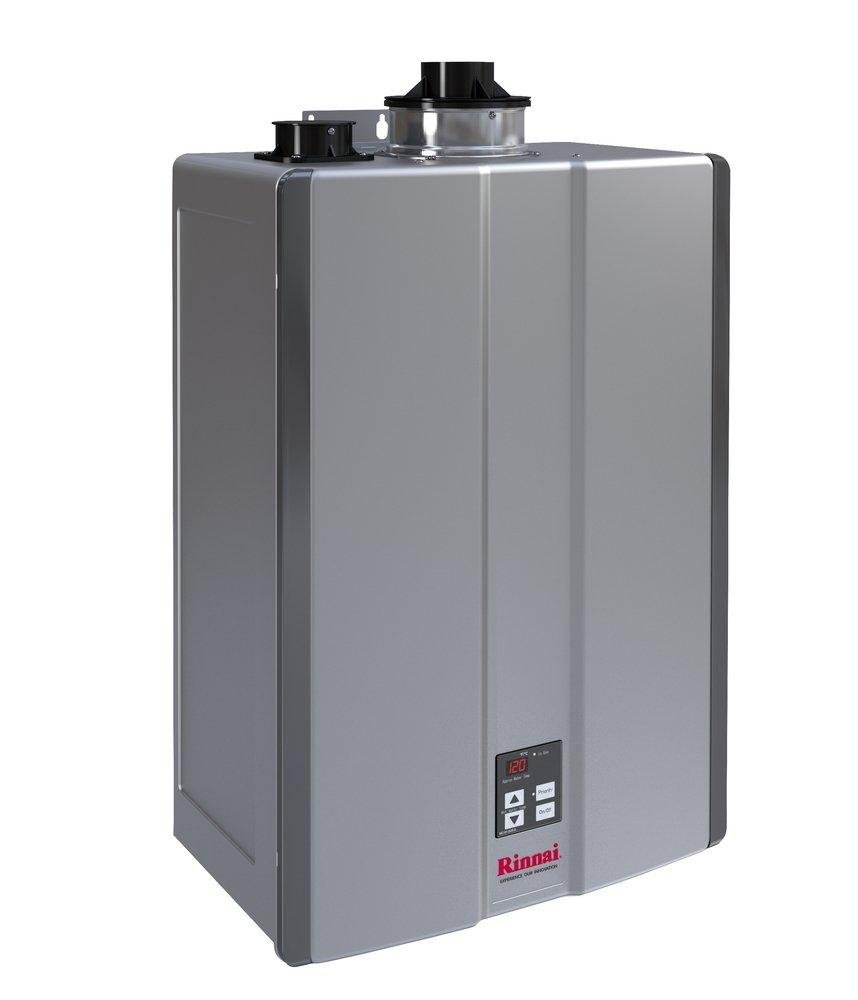

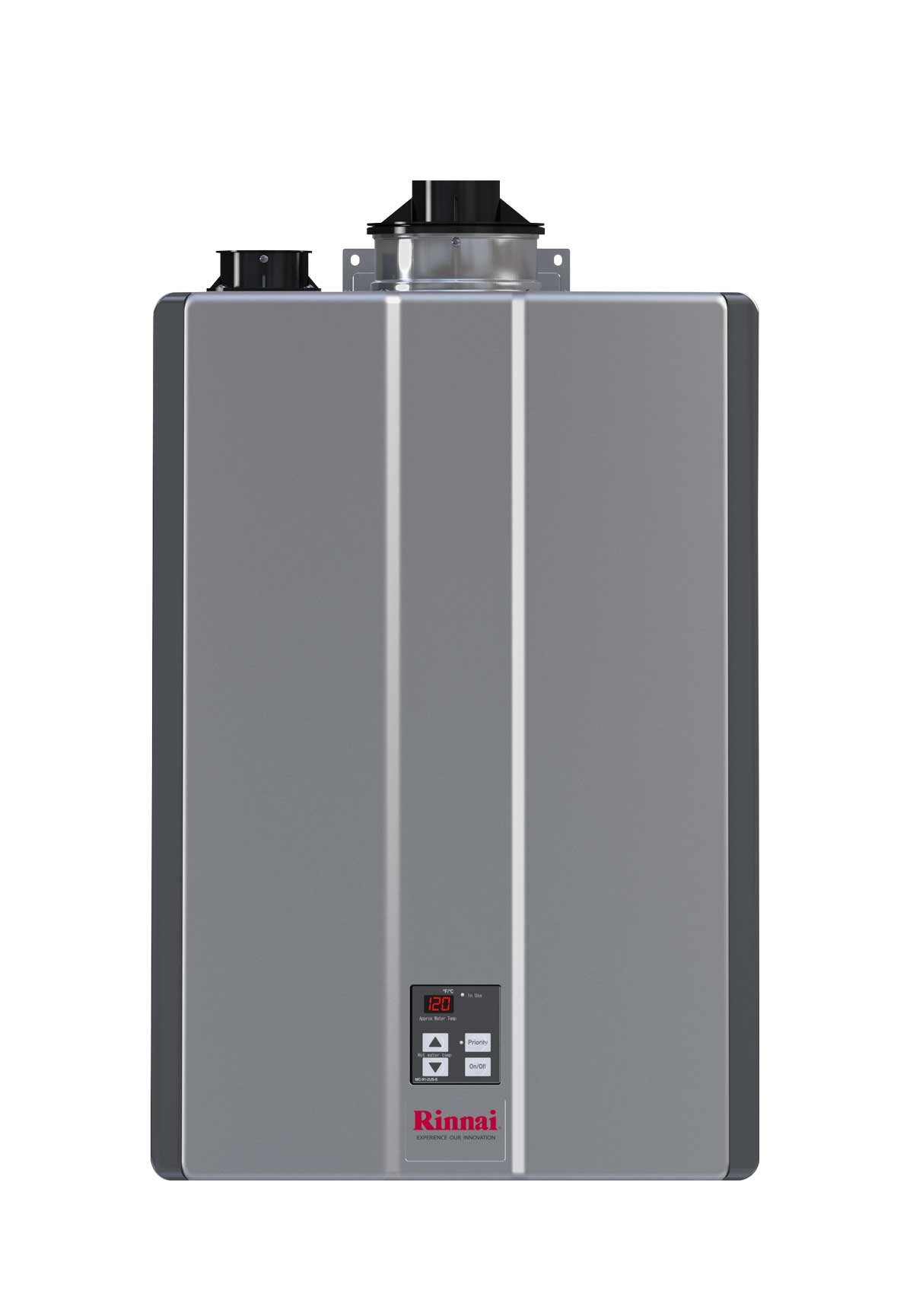

Rinnai RU180IP Sensei™ Residential 180,000 BTU Liquid Propane Tankless Water Heater Indoor

Product Description

The Rinnai RU180IP Sensei™ tankless water heater raises the bar in tankless heating technology. Designed for residential indoor installation, it provides simple installation, efficient performance, and flexible venting options. A corrosion-resistant stainless steel heat exchanger and included safety devices allow for powerful and efficient water heating. It delivers continuous hot water for multiple applications.

• Continuous Water for Multiple Applications
• Energy Efficient Promise
• Wi-Fi Compatible

Product Highlights

This Rinnai Sensei™ RU180IP tankless water heater features enhanced combustion design and flexible venting options. It includes isolation valves and a pressure relief valve for easy maintenance.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: RU180IP
• Country of Origin: Japan

Technical Specifications

• Fuel Type: Liquid Propane
• Installation Location: Indoor
• Product Depth: 11.45 Inches
• Product Width: 18.5 Inches
• Type: Tankless Water Heater
• CSA Listed: Yes
• Product Height: 26.4 Inches
• Frequency: 60 Hz
• Product Category: Water Heater – Tankless
• Shipping Weight: 74 Pounds
• Maximum Input Capacity (BTU/Hr): 180,000
• Cold Water Inlet: 3/4 Inch
• Hot Water Outlet: 3/4 Inch
• AHRI Certified: Yes
• Vent Type: Direct Vent
• Minimum Flow Rate: 0.4 GPM
• Gas Connection Size: 3/4 Inch
• Mount Type: Wall
• Application: Residential
• Product Line: Sensei
• Storage Type: Tankless
• Energy Star Listed: Yes
• Includes Pump: No
• Uniform Energy Factor: 0.92
• Minimum Input Capacity: 15000 BTU
• Combustion Type: Condensing
• Ultra Low NOx Emissions: Yes
• Parts Warranty: 5 Years
• AHRI Reference Number: 10595512
• Maximum Altitude: 10200 Feet
• Product Sub-line: Super High Efficiency Plus (SE+)
• Venting Category: IV
• Primary Vent Pipe Diameter: 2 Inches
• Heat Exchanger Warranty: 15 Years
• Flow Rate at 40F Temperature Rise: 8.6 GPM
• Flow Rate at 45F Temperature Rise: 7.7 GPM
• Flow Rate at 50F Temperature Rise: 6.9 GPM
• Flow Rate at 60F Temperature Rise: 5.8 GPM
• Flow Rate at 70F Temperature Rise: 4.9 GPM
• Electrical Input Supply Rating: 120 Volt AC at 60 Hertz, 12 Volt DC, 4 Amp, 65 Watt
• Ignition Type: Direct Electronic
• Inlet/Outlet Connection: 3/4 Inch Threaded x 3/4 Inch Threaded
• Temperature Rating: 98 to 140 Deg F
• Energy Factor: 0.95
• Pressure Rating: 50 to 150 PSI
• Flow Rating: 9 GPM
• Sound Level: 47 Decibel
• Voltage: 120v
• Gas Type: Propane Gas
• Max BTU Input: 180000
• Min BTU Input: 15000
• Water Connection: 3/4″
• Water Pressure (Min): 50
• Water Pressure (Max): 150
• Temperature (Min): 98
• Temperature (Max): 140
• Liquid Propane Pressure (Min): 8.0 WC
• Liquid Propane Pressure (Max): 13.5 WC
• Amperage: 4
• Activation GPM: 0.4
• Maximum Flow Rate: 10 GPM
• Minimum Gas Input: 15000
• Control Type: Electronic
• Direct Vent: Yes
• Display Type: Digital
• Heating Technology: Condensing
• Indoor Installation: Yes
• Installation Type: Wall Mounted
• Water Connection Type: MNPT, NPT
• Altitude Certification: 10200 ft.
• Power Source: Hardwired
• Default Temperature: 120 °F
• Domestic Hot Water Flow Rate (Maximum): 10 GPM / (37.9 l/min)
• SCAQMD Approved: Ultra Low NOx
• Warranty – Residential Heat Exchanger (months): 180
• Warranty – Residential Labor (months): 12
• Warranty – Residential Parts (months): 60
