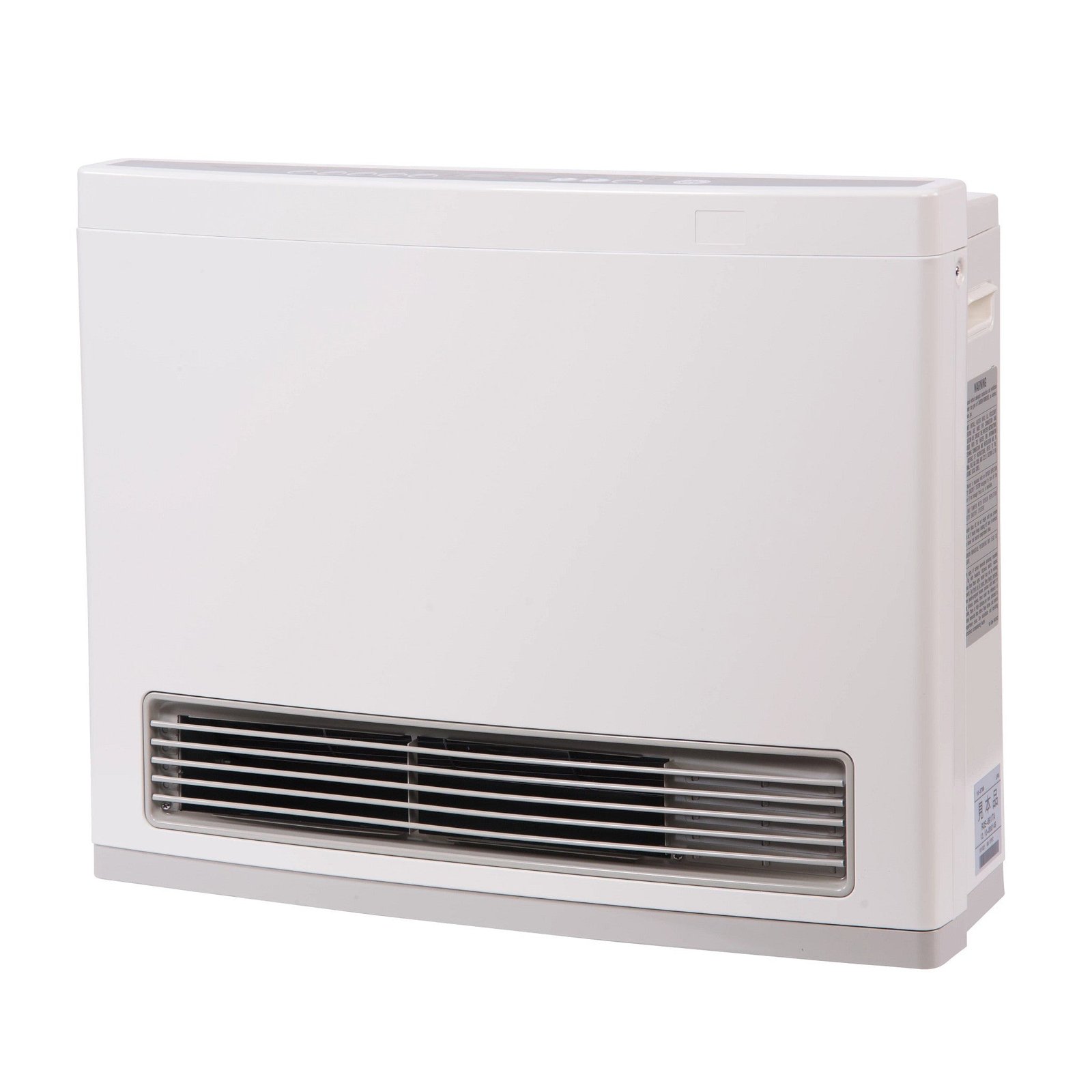

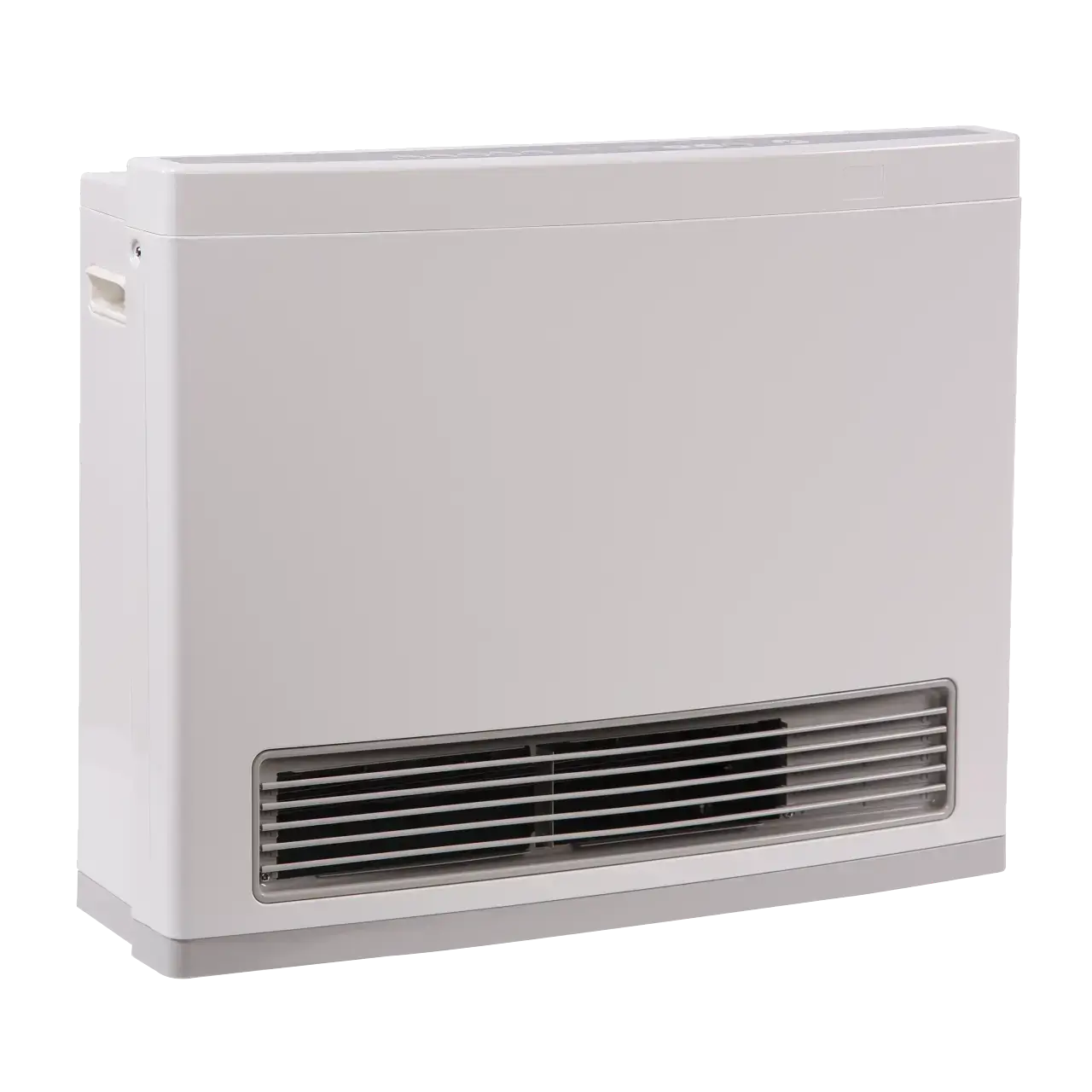

Rinnai FC824 Fan Convector 24,000 BTU

Product Description

The RINNAI FC824 is a flexible and easy-to-install vent-free fan convector. Designed to heat hard-to-warm spaces, this heater evenly distributes warmth with its convection fan. It features modulating technology with a gas valve and variable-speed blower, ensuring energy-efficient heating. The FC824 is equipped with multiple safety features for secure operation.

• Vent-free design eliminates the need for exterior wall installation.
• Modulating gas valve and variable-speed blower optimize efficiency.
• Equipped with an oxygen depletion sensor, overheat switch, and tilt switch for safety.

Product Highlights

The RINNAI FC824 provides consistent warmth with a compact design and user-friendly controls, perfect for supplemental heating in various spaces.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: FC824

Technical Specifications

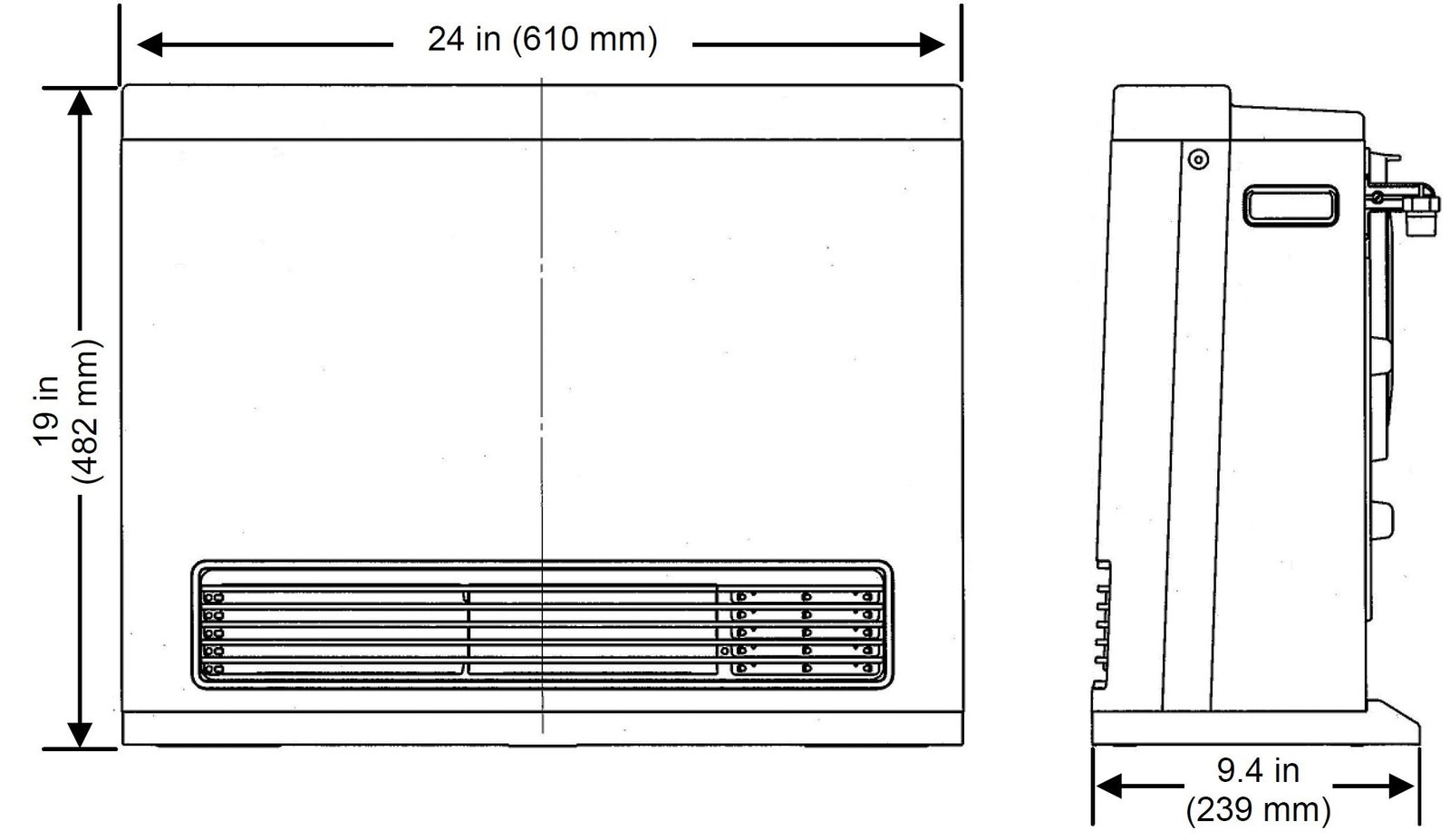

• Product Depth: 9.4 in / (239 mm)
• Product Height: 19 in / (482 mm)
• Product Width: 24 in / (610 mm)
• Gas Type: Natural Gas
• Central Heating Capacity: 24,000 BTU / (7.0 kW)
• Installation Type: Floor or Wall Mount
• Fuel Type: Choice NG / LP
• Installation Kit: Wall and Floor Stand Kits Included
• Type of Venting: Vent Free
• Tilt Switch: Yes
• Heating BTUs: 24000
• CFMs: 109.5 / 215.4 (L / H)
• Blower: Convection Fan
• Flame Type: Burner
• Ignition Type: Electronic Ignition
• Control Type: Thermostatic
• Gas Connection Size: 1/2″
• Manifold Pressure (in.): 3.4″ w.c. (NG) / 6.3″ w.c. (LP)
• Inlet Gas Pressure (Min.): 5.0″ w.c. (NG) / 8.0″ w.c. (LP)
• Inlet Gas Pressure (Max.): 10.0″ w.c. (NG) / 13.0″ w.c. (LP)
• Top to Ceiling (in.): 2
• Bottom to Floor (in.): 0
• To Side Wall (in.): 2
• Certifications: CSA
• Voltage: 110-120V
• Amperage: 4 Amps
