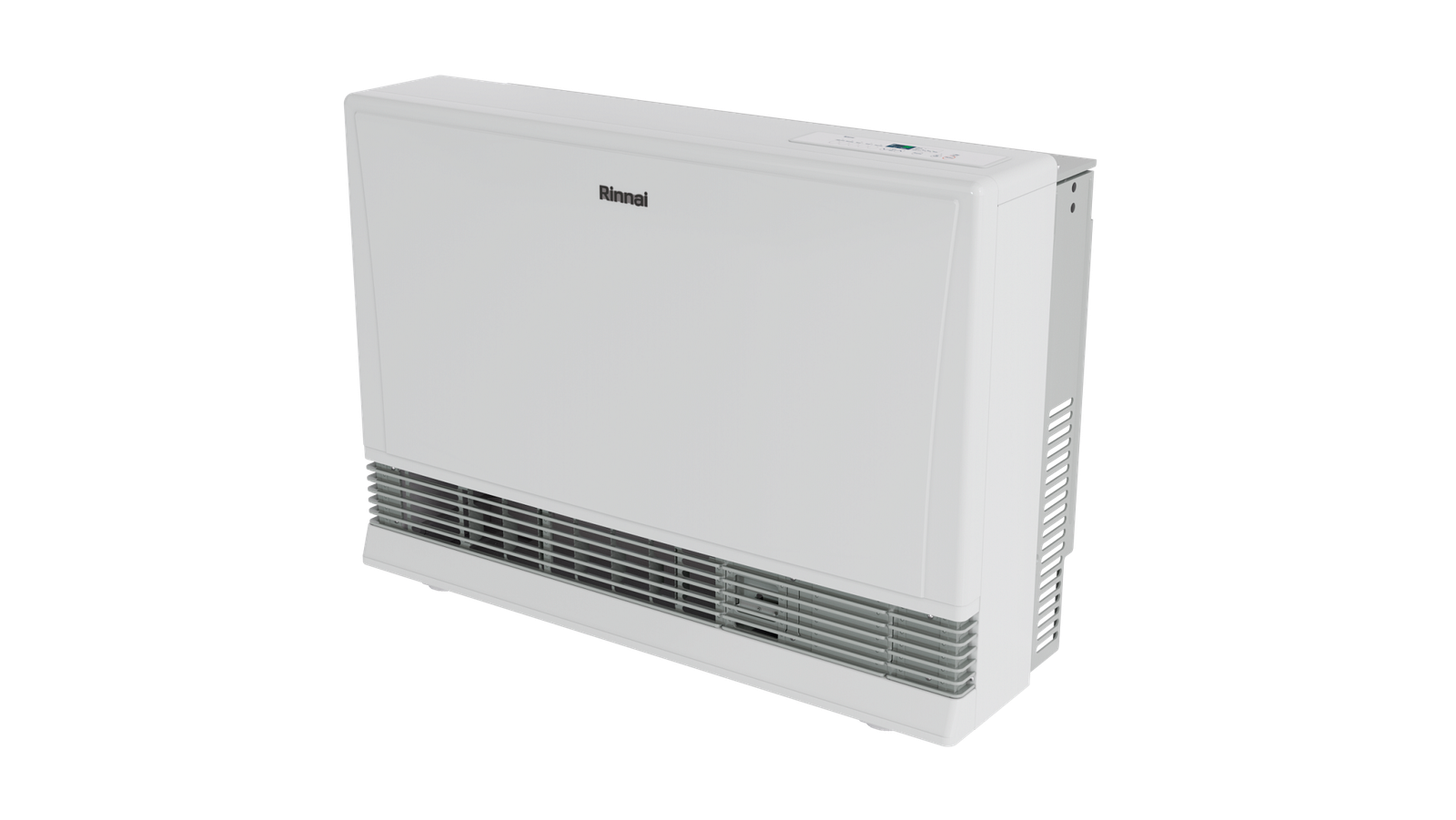

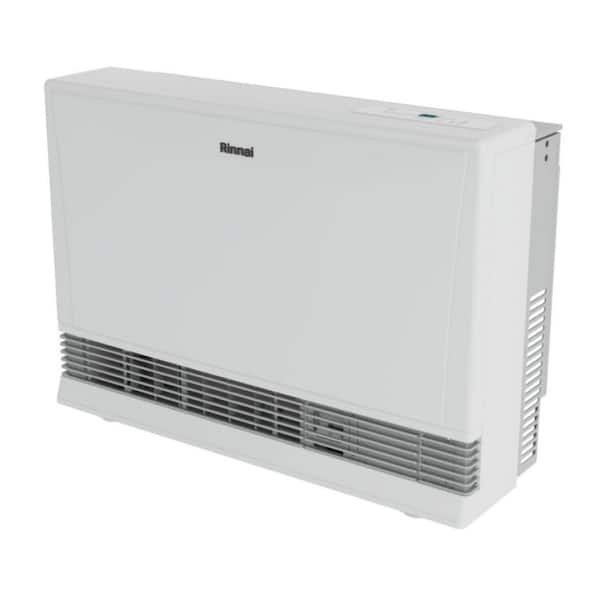

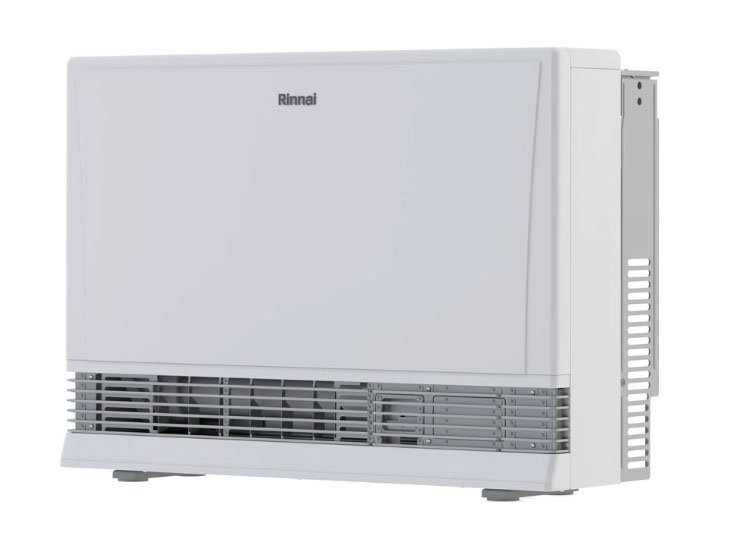

Rinnai EX38DT EnergySaver Direct Vent Wall Furnace 36,500 BTU

Product Description

The RINNAI EX38DT EnergySaver is a direct vent wall furnace providing 36,500 BTU for heating large rooms. This ductless propane gas heater offers versatile installation along exterior walls and features a built-in programmable thermostat, with WiFi-enabled thermostat compatibility. Modulating technology maximizes efficiency by continuously monitoring room temperature and adjusting heat output.

• Quick, flexible installation
• Direct Vent installation versatility
• Built-in programmable thermostat

Product Highlights

This direct vent wall furnace is an excellent source of heat for large rooms. It features modulating technology for maximum efficiency.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: EX38DT

Technical Specifications

• Product Depth: 12.6 in / (320 mm)
• Product Height: 26.4 in / (670 mm)
• Product Width: 36.63 in / (930 mm)
• Gas Type: Propane Gas
• Installation Type: Wall Mount
• Central Heating Capacity: 36,500 BTU / (10.7 kW)
• BTU (minimum): 13,200
• BTU (maximum): 36,500
• Fuel Type: Choice NG / LP
• Installation Kit: Vent Kit Included
• Heating BTUs: 38400
• Heating BTUs (Output): 30720
• Type of Venting: Direct Vent
• Vent Connection Size (in.): 3 1/8″
• Blower: Included
• Ignition Type: Electronic
• Control Type: Thermostatic
• Gas Connection Size: 1/2″
• Manifold Pressure (in.): 3.8″ w.c (NG) / 6.4″ w.c. (LP)
• Inlet Gas Pressure (Min.): 3.5″ w.c. (NG) / 8.0″ w.c. (LP)
• Inlet Gas Pressure (Max.): 10.5″ w.c. (NG) / 13.0″ w.c. (LP)
• Top to Ceiling (in.): 0″
• Bottom to Floor (in.): 0″
• To Side Wall (in.): 2″
• Certifications: CSA
