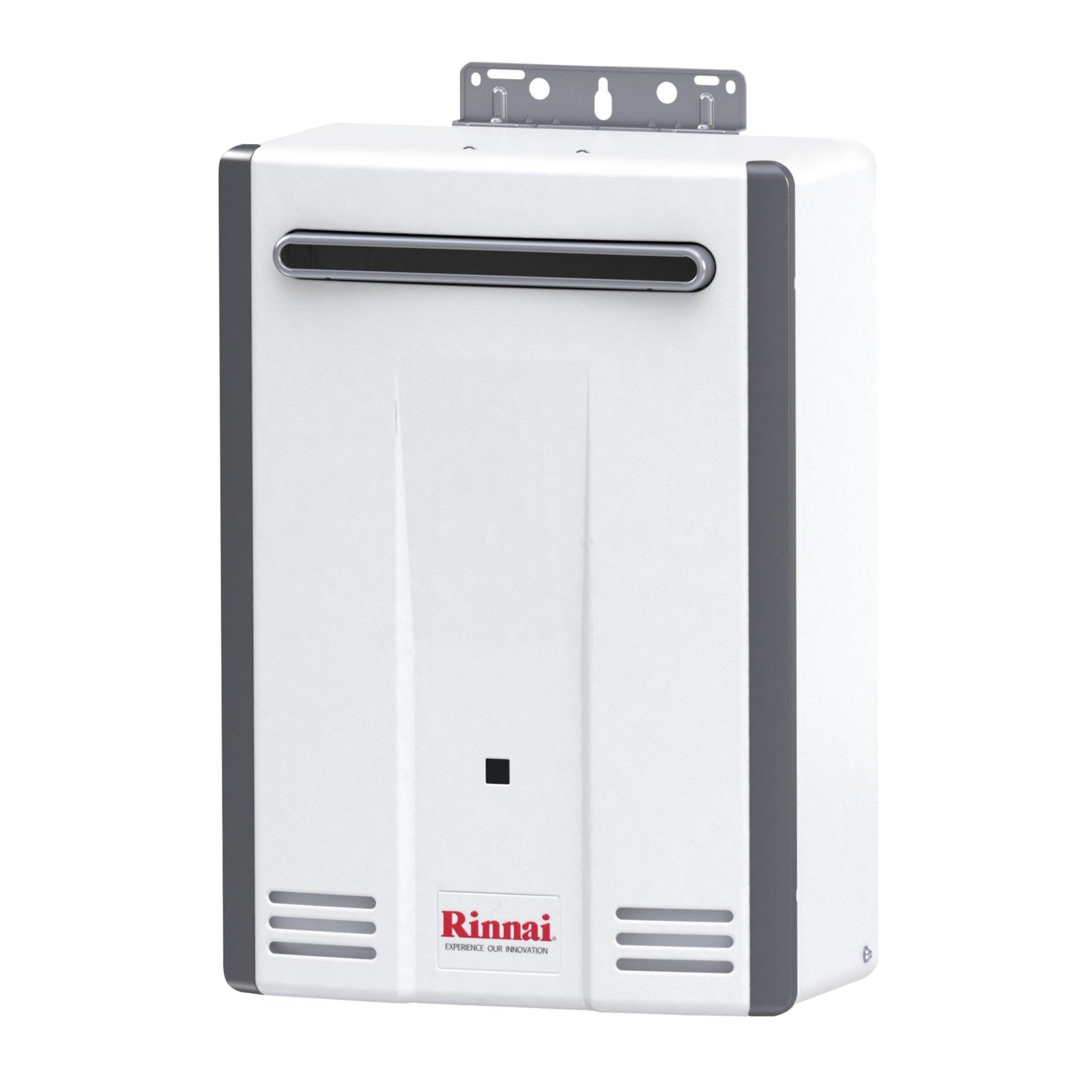

Rinnai V75EN Non-Condensing Outdoor Tankless Water Heater 180,000 BTU (Natural Gas)

Product Description

The Rinnai V75EN is a combination of comfort and value. This easy-to-install, compact, non-condensing model combines the reliability expected from Rinnai with performance ideal for medium- to smaller-sized new homes or remodels. It is certified for installation in manufactured (mobile) homes.

• Energy Factor of 0.82 for Natural Gas and Propane
• Enhanced scale detection lessens possibility of serious, long-term damage to unit
• Temperature lock prevents accidental or unauthorized changes to water temperature

Product Highlights

This Rinnai tankless water heater complies with South Coast Air Quality Management District 14 ng/J or 20 ppm NOx emission levels.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: V75EN
• Country of Origin: JAPAN

Technical Specifications

• Product Type: Tankless Heater
• Installation Type: Outdoor Only
• Fuel Type: Natural Gas
• Energy Factor: 0.82
• BTU (Max): 180000
• BTU (Min): 10300
• Type: Non-Condensing
• Temperature Range (F): 98°F to 140°F
• Flow Range (GPM): 0.26 – 7.5
• Voltage: 120v
• Cold Water Inlet (NPTM): 3/4″
• Hot Water Outlet (NPTF): 3/4″
• Gas Connection: 3/4″
• Height (Inches): 23″
• Width (Inches): 14″
• Depth (Inches): 9″
• Application: Residential
• Flow Rate at 60F Temp Rise (GPM): 5
• Flow Rate at 70F Temp Rise (GPM): 4.3
• Flow Rate at 40F Temp Rise (GPM): 7.5
• Flow Rate at 50F Temp Rise (GPM): 6
• Hot Water @ 35°F Rise Capacity: 0.26 to 7.5 GPM
• Hot Water @ 45°F Rise Capacity: 6.6 GPM
• Hot Water @ 70°F Rise Capacity: 4.2 GPM
• Max. BtuH Input: 180,000
• Min. BtuH Input: 10,300
• Model #: V75eN
• Mfg. Model: R-V75EN
• Maximum BTU Output: 180000
• Flow Rate: 7.5-GPM
• Location: Outdoor
