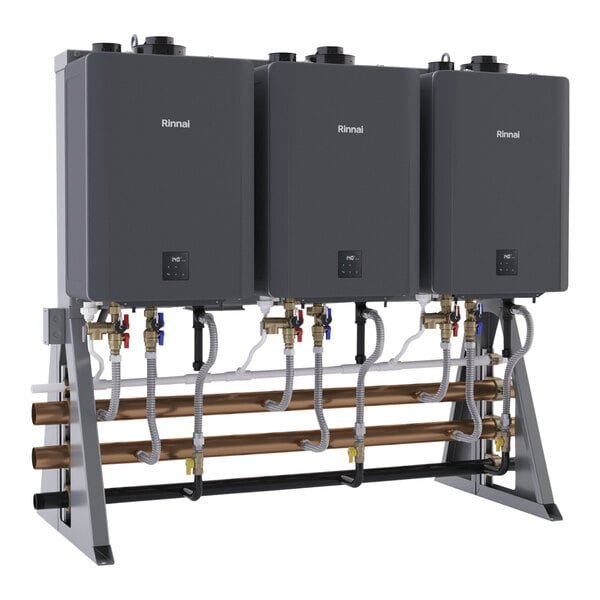

Rinnai TRS03ILCXIN commercial freestanding rack systems 597,000 BTU 3-unit

Product Description

The Rinnai TRS03ILCXIN is a commercial freestanding rack system designed for high-demand hot water environments. This 3-unit system provides built-in redundancy by banking individual tankless water heaters, ensuring continuous hot water supply even if one unit is down. It features a maximum BTU input of 597,000, a 26:1 turndown ratio, and 97% thermal efficiency, making it suitable for commercial applications requiring reliable and efficient hot water.

• Built-in redundancy ensures continuous hot water delivery.
• Achieves 97% thermal efficiency for energy savings.
• Features a 26:1 turndown ratio for precise performance.

Product Highlights

This commercial freestanding rack system provides built-in redundancy and 97% thermal efficiency for high-demand hot water applications.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: TRS03ILCXIN
• Country of Origin: USA

Technical Specifications

• Depth: 17.7 in (450 mm)
• Height: 57.69 in (1465 mm)
• Width: 65 in (1651 mm)
• Weight: 297 lb (134.7 kg)
• Fuel Type: Natural Gas
• Installation Location: Indoor
• Uniform Energy Factor (UEF): 0.98
• Maximum Flow Rate: 27 GPM
• Thermal Efficiency: 97%
• Minimum BTU: 15,000
• Maximum BTU: 597,000
• Turndown Ratio: 26:1
• Amperage: 12 Amps
• Frequency: 60 Hz
• Phase: 1 Phase
• Voltage: 120 Volts
• Application: Multiple Points of Use
• Frame Material: Aluminum
• Gas Connection Size: 1 1/4 Inches
• Number of Units: 3 Units
• Product Line: Rinnai SENSEI
• Style: Tankless
• Type: Rack Systems, Water Heaters
• Water Inlet Size: 2 Inches
• Category: Rack System
