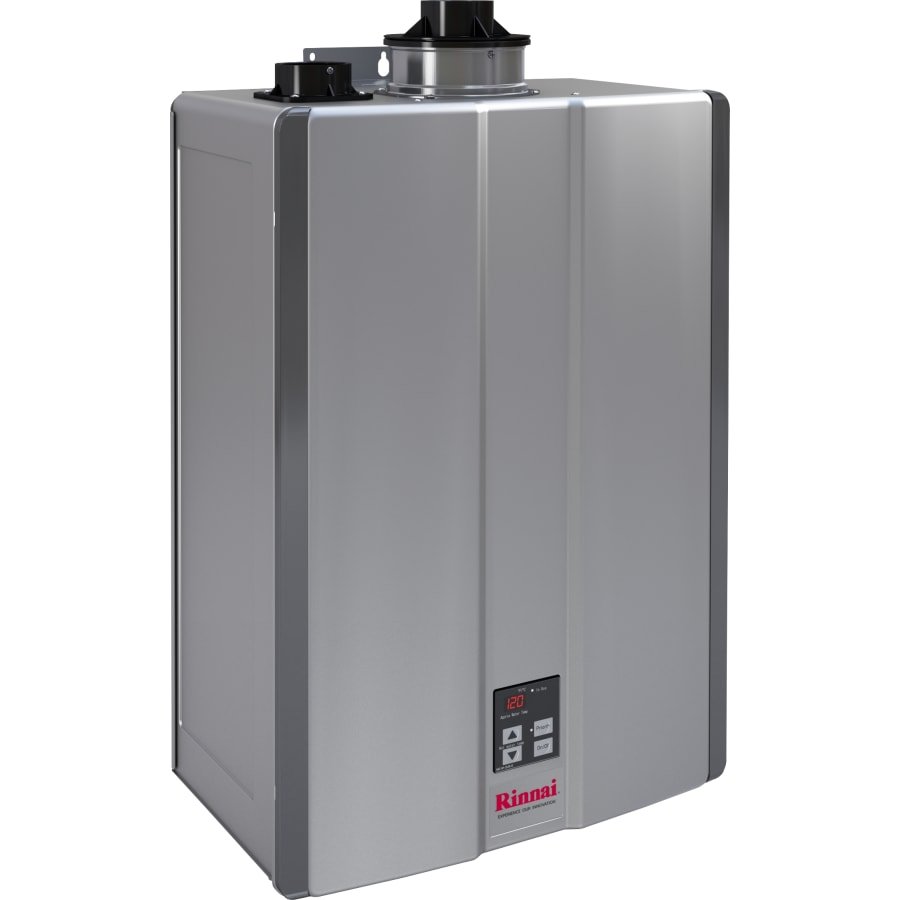

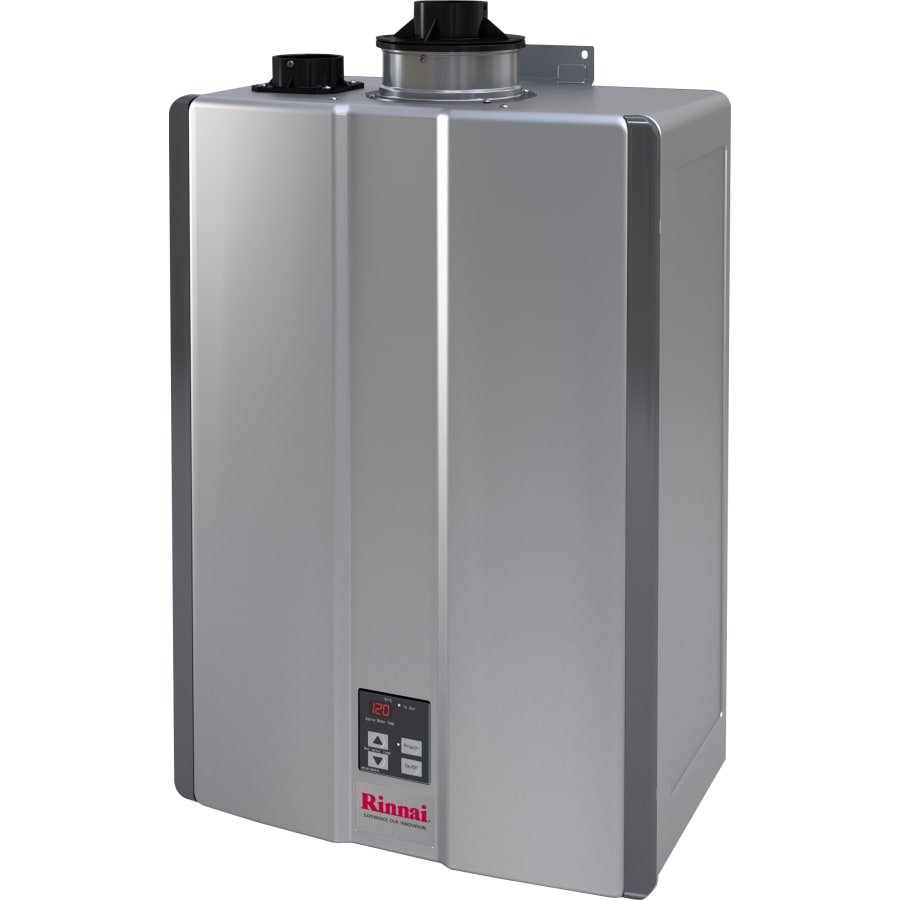

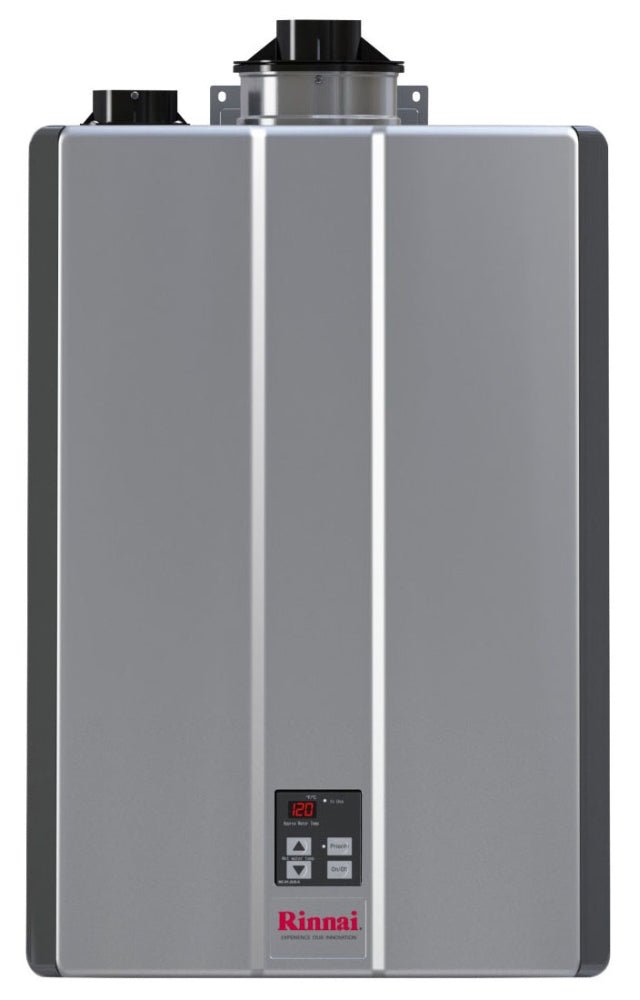

Rinnai RUR199IN Water Heater 15000 to 199000 BTU/Hr

Product Description

The RINNAI RUR199IN water heater is designed for both commercial and residential indoor applications. It supports natural gas and features direct vent capabilities. With a BTU range of 15000 to 199000 BTU/Hr, this lead-free water heater provides an efficient and reliable water heating solution.

• Suitable for commercial and residential use
• Operates on natural gas
• Designed for indoor installation

Product Highlights

Efficient natural gas water heater with a wide range of BTU output for diverse applications.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: RUR199IN
• Country of Origin: Japan

Technical Specifications

• Application: Tankless Water Heater
• Fuel Type: Natural Gas
• Vent Type: Direct Vent
• Usage: Indoor
• Power: 120 VAC 60 Hz, 12 VDC, 4 A, 84 W
• Gas Connection: 3/4″ NPT
• BTU: 15000 to 199000 BTU/Hr
• Lead Free: Yes
• Series: Super High Efficiency Plus
• Mounting: Wall
• Standards: AHRI, CSA, CEC, Energy Star, Mobile Home Certified
• Temperature Range: 98-140 deg. F
• Flow Rate (GPM): 0.26 to 11
• Residential / Commercial: Residential / Commercial
• Country of Origin (subject to change): Japan
• ENERGY STAR® Qualified: Yes
• Product Type: Tankless Heater
• Installation Type: Indoor Only
• Energy Factor: 0.93
• Energy Star Rated: Yes
• Temperature Range (F): 98°F to 140°F
• Flow Range (GPM): 0.26 – 9.8
• Hot Water Outlet (NPTF): 3/4″
• Cold Water Inlet (NPTM): 3/4″
• Height (Inches): 26.4″
• Width (Inches): 18.5″
• Depth (Inches): 11.4″
• Warranty: 15 Year Ltd. Heat Exchanger/ 5 Year Ltd. Parts/ 1 Year Ltd. Labor
• Type: Condensing
• Flow Rate at 70F Temp Rise (GPM): 5.5
• Flow Rate at 60F Temp Rise (GPM): 6.4
• Flow Rate at 40F Temp Rise (GPM): 9.8
• Flow Rate at 50F Temp Rise (GPM): 7.6
• Water Connection: 3/4″
• Water Pressure (Min): 50
• Water Pressure (Max): 150
• Temperature (Min): 98
• Temperature (Max): 140
• Natural Gas Pressure (Min): 3.5 WC
• Natural Gas Pressure (Max): 10.5 WC
• Frequency: 60
• Amperage: 4
• Activation GPM: 0.4
• Duct Size: 3″ Round
• Maximum Flow Rate: 11 GPM
• Minimum Flow Rate: 0.26 GPM
• Control Type: Electronic
• Direct Vent: Yes
• Display Type: Digital
• Heating Technology: Condensing
• Indoor Installation: Yes
• Installation Location: Indoor
• Water Connection Type: MNPT, NPT
• Manufacturer Technology: Recirculation
• Altitude Certification: 10200 ft.
• Condensing: Yes
• Default Temperature: 120 °F
• Power Source: Hardwired
• Certifications: CSA, AHRI, ANSI
• Energy Star: Yes
• Heat Exchanger Warranty: 8-Years Limited Commercial, 15-Years Limited Residential
• Indoor Approved: Yes
• Low Lead Compliant: Yes
• Manufacturer Warranty: 1 Year Labor, 5 Year Parts
• Mobile Home Approved: Yes
• Outdoor Approved: No
• Product Variation: Whole House Water Heater
• Quick Ship: Yes
• SCAQMD Compliant: Yes
