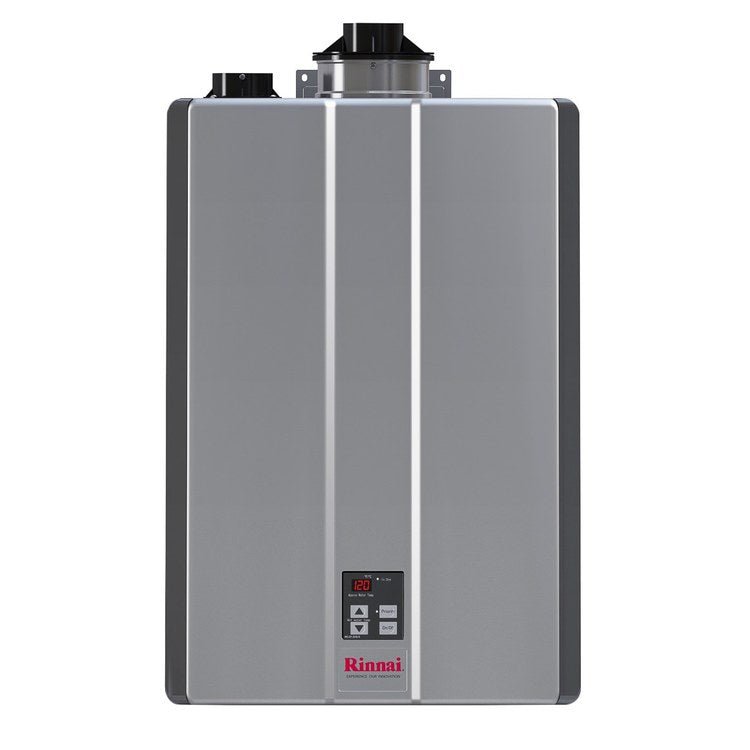

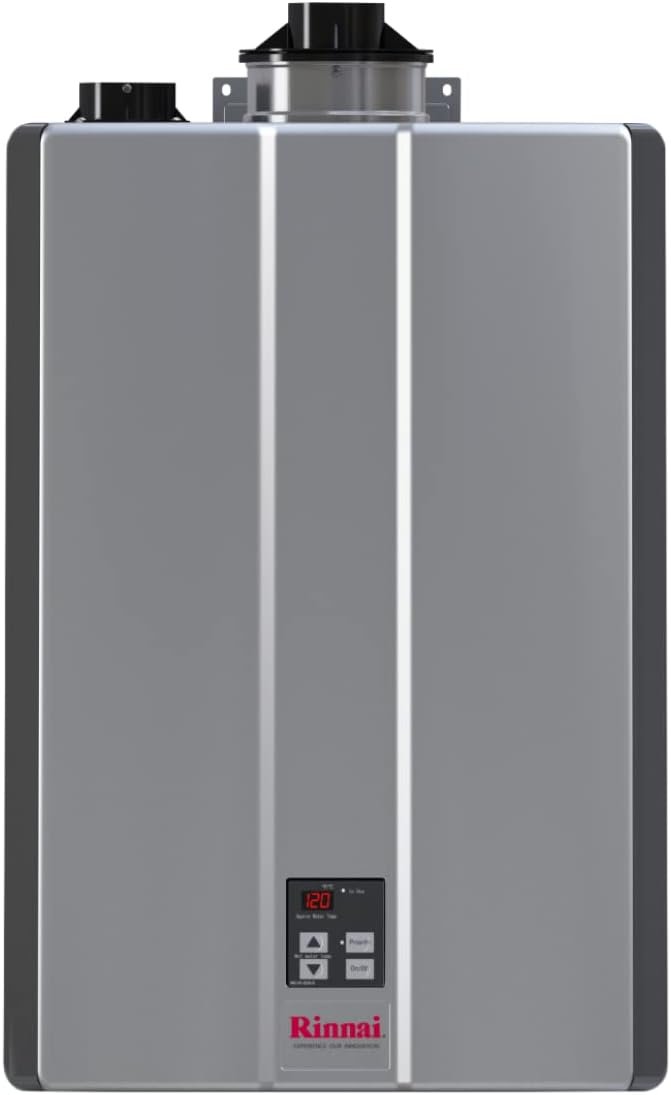

Rinnai RSC160iN Smart-Circ Condensing Gas Tankless Water Heater 160,000 BTU

Product Description

The Rinnai RSC160iN Smart-Circ Condensing Gas Tankless Water Heater is a super high-efficiency natural gas water heater with a capacity of up to 9 GPM and 160,000 BTU, designed for indoor installation. This tankless water heater provides an endless supply of hot water and is compact and easy to install. It features Smart-Circ Technology and is ENERGY STAR qualified.

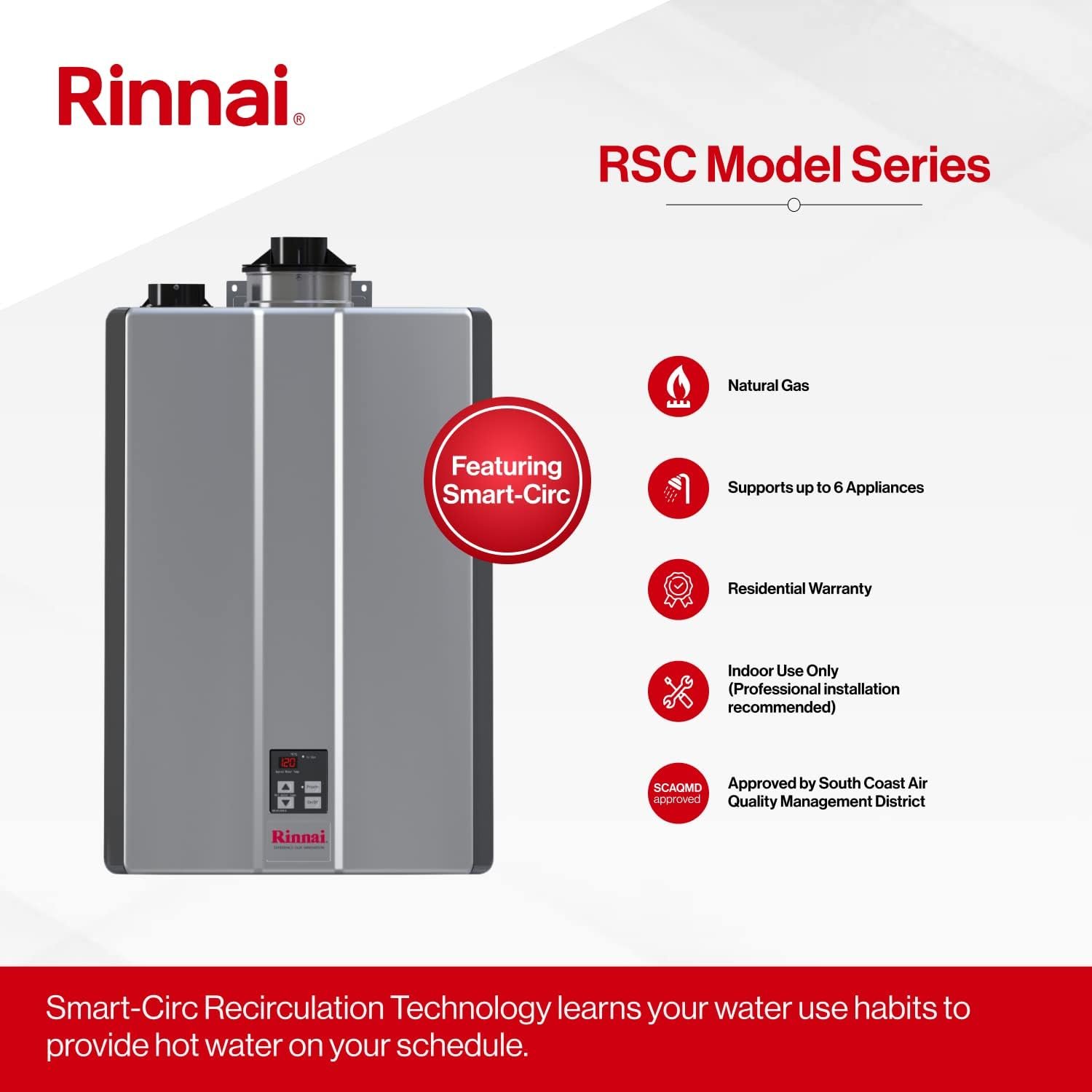

• Smart-Circ Technology
• Condensing Gas Tankless Water Heater
• Super High Efficiency

Product Highlights

The Rinnai RSC160iN tankless water heater delivers high efficiency and continuous hot water for indoor residential and commercial applications.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: RSC160iN
• Country of Origin: Japan

Technical Specifications

• Color: Gray
• Style: Natural Gas, Indoor Installation
• Finish: Silver
• Voltage: 120 Volts
• Item Model Number: RSC160iN
• Part Number: RSC160iN
• Brand: Rinnai
• Category: Tankless Water Heaters
• BTU Rating: 199,000 BTU maximum
• Installation Type: Indoor
• Model: RSC160iN
• Fuel Type: Natural gas
• Maximum BTU Output: 160000 BTU
• GPM: 9
• Voltage [Specifications]: AC 120 Volts, 60 Hz
• Gas Type [Specifications]: Natural Gas
• Standards [Specifications]: AHRI, CSA, CEC, Energy Star, Mobile Home Certified
• Application [Specifications]: Indoor

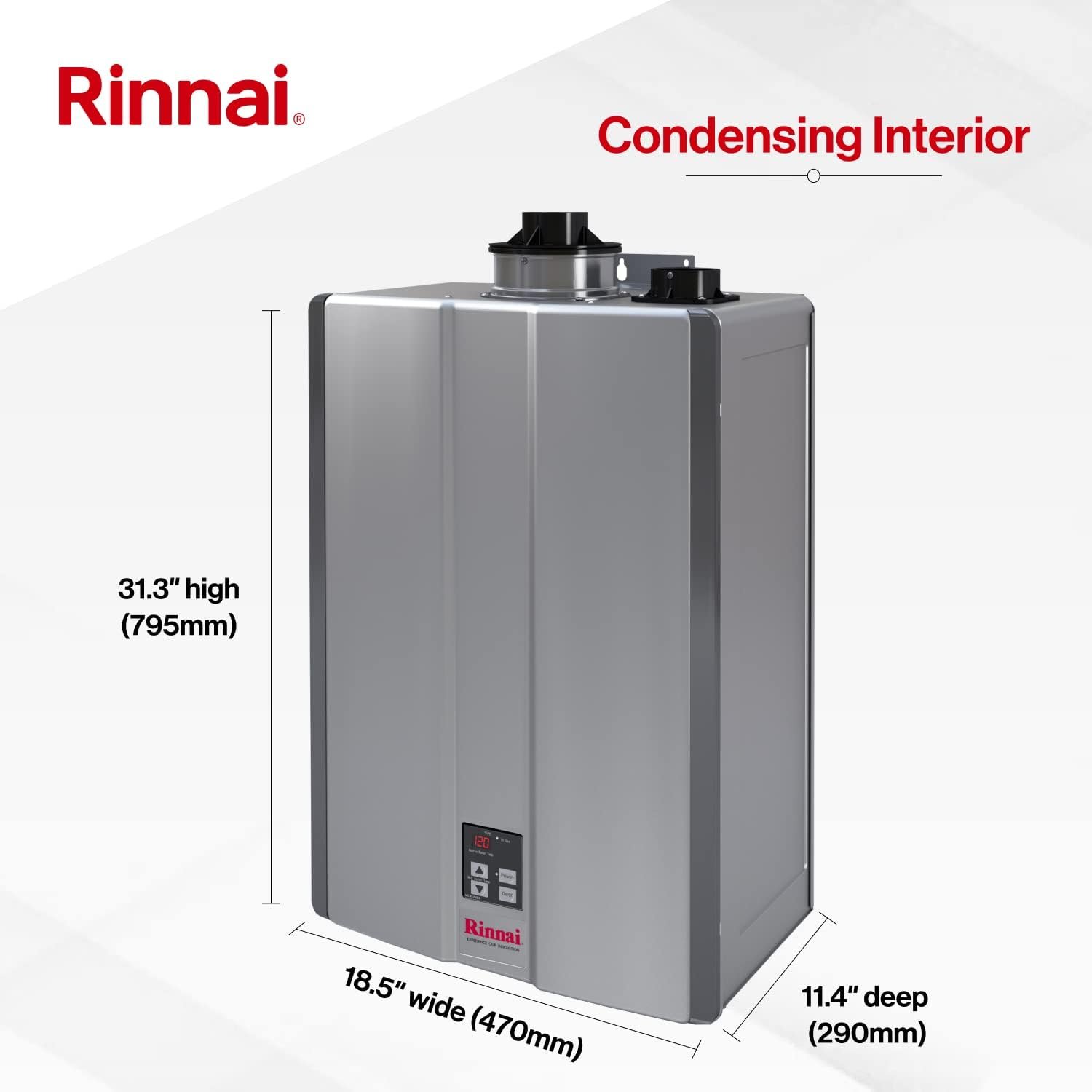

• Depth (In.) [Specifications]: 11.4 inch
• Width (In.) [Specifications]: 18.5 inch
• Height (In.) [Specifications]: 31.3 inch
• BtuH – Water Heaters [Specifications]: 160,000 BTU/h
• Residential / Commercial [Specifications]: Residential & Commercial
• Ignition Type – Water Heaters [Specifications]: Direct Electronic Ignition
• Country of Origin (subject to change) [Specifications]: Japan
• Width: 18-1/2″
• Height: 31-5/16″
• Depth: 11-3/8″
• Gas Connection: 3/4″
• Water Connection: 3/4″
• Water Pressure (Min): 50
• Water Pressure (Max): 150
• Temperature (Min): 98°F
• Temperature (Max): 140°F
• Maximum Gas Output: 160,000 BTU
• Activation GPM: 0.4
• Maximum Flow Rate: 8, 9 GPM
• Minimum Flow Rate: 0.26 GPM
• Default Temperature: 120 °F
• Amperage: 4
• Heating Technology: Condensing
• Indoor Installation: Yes
• Vent Type: Direct Vent
• Water Connection Type: NPT
• Manufacturer Technology: Recirculation
• Approved for Commercial Use: Yes
• Certifications: AHRI, CSA
• Collection: SENSEI
• Series: SENSEI
• Energy Star: Yes
• Low Lead Compliant: Yes
• Mobile Home Approved: Yes
• Outdoor Approved: No
• Product Variation: Point-Of-Use Water Heater
• Title 20 Compliant: Yes
• Heat Exchanger Warranty: 15-Years Limited Residential
• Manufacturer Warranty: 1 Year Labor, 5 Year Parts
• Uniform Energy Factor: 0.93, 0.95
