Rinnai RE180e Re180e 180,000 Btu, Non-Condensing Outdoor Tankless Water Heater (Natural Gas)

Product Description

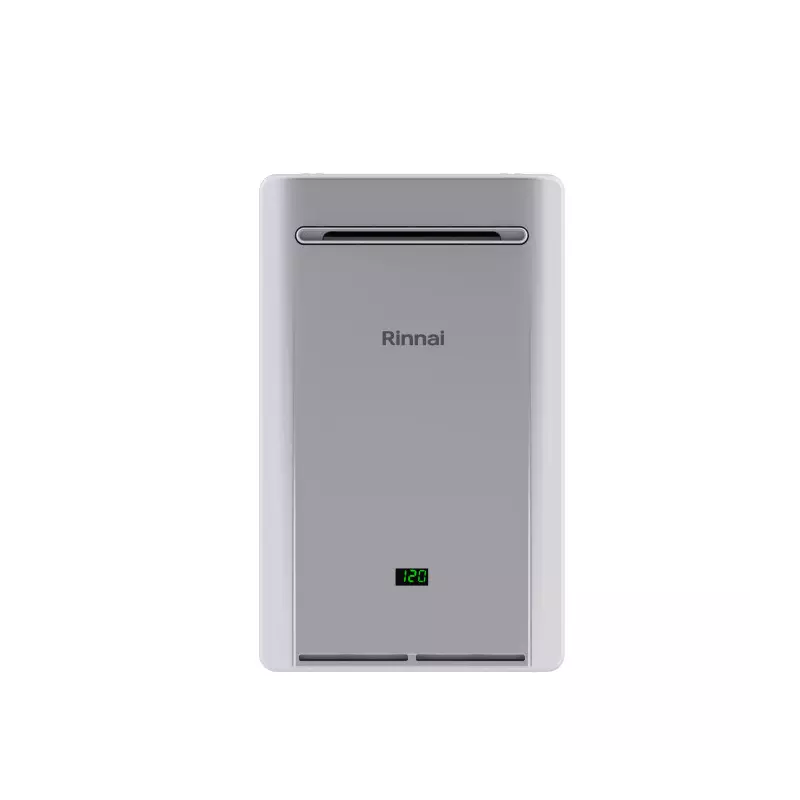

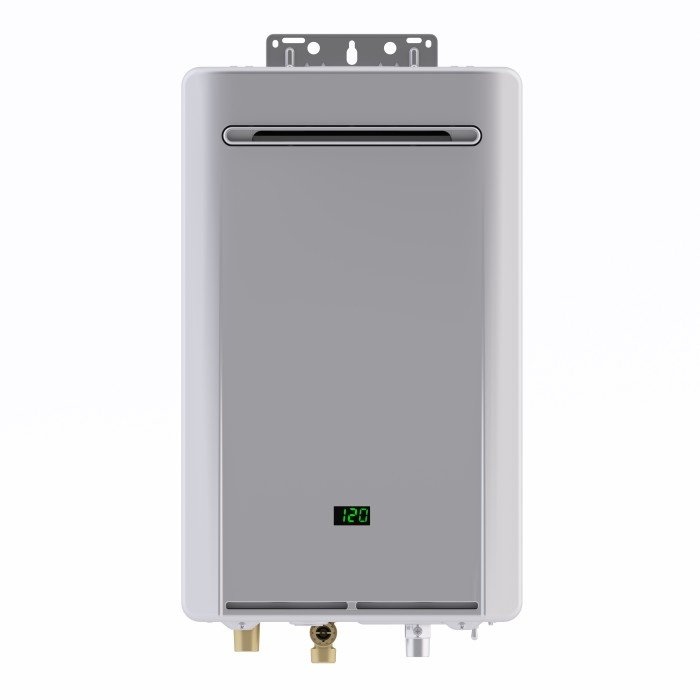

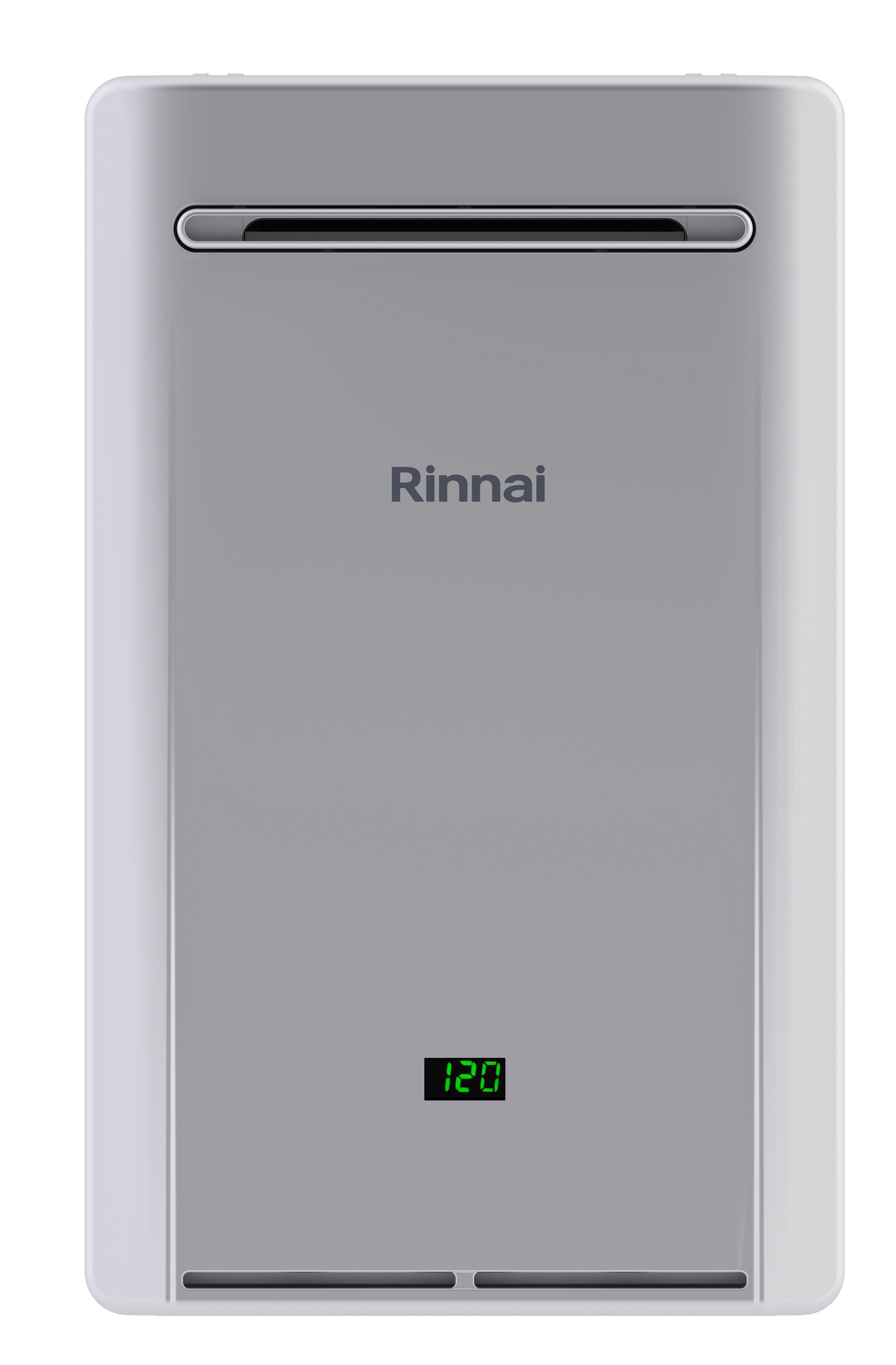

The Rinnai RE180eN is a natural gas, non-condensing tankless water heater combining high efficiency and comfort. Ideal for small to medium homes, it’s easy to install and perfect for outdoor locations. It features a BTU range of 10,400 to 180,000, and a temperature range of 98°F to 140°F.

• Uniform Energy Factor: 0.82
• Wi-Fi Capable

Product Highlights

This Rinnai tankless water heater provides peace of mind with exceptional warranties and is suitable for residential applications.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: RE180e

Technical Specifications

• Product Type: Tankless Heater
• Installation Type: Outdoor Only
• Fuel Type: Natural Gas
• Energy Star Rated: No
• Energy Factor: 0.82
• Application: Residential
• BTU (Min): 10400
• BTU (Max): 180000
• Temperature Range (F): 98°F to 140°F
• Flow Range (GPM): 0.4 – 8.5
• Voltage: 110-120V
• Gas Connection: 3/4″
• Cold Water Inlet (NPTM): 3/4″
• Hot Water Outlet (NPTF): 3/4″
• Depth (Inches): 10.77″
• Height (Inches): 24.64″
• Width (Inches): 14.05″
• Recirculation Capable: Yes
• Uniform Energy Factor (UEF): 0.82
• Wi-Fi Capable: Yes
• Minimum Gas Consumption (BTUs): 10400
• Maximum Gas Consumption (BTUs): 180000
• Product Use: Residential Only
• Energy Star: No
• Condensing: No
• Built-In Re-Circulation Pump: No
• Connectivity: Yes, Module Available (Optional)
• Mobile Home Certified: Yes
• Gallons Per Minute (GPM): 0.13 – 8.5
• Temperature Setting Range: 98°F – 140°F
• Thermal Bypass Valve: No
• Isolation Valve: Optional (sold separately)
• Venting: None (Outdoor Installation)
• Water Connection Size: 3/4″ NPT
• Overall Depth (in.): 10.77
• Overall Height (in.): 22.87
• Overall Width (in.): 14.05
• Amps: 4
• Circuit Breaker Amps: 10
• Brand: Rinnai
• Capacity: 8.5 Gallons
• Power Source: gas_powered
• Special Feature: LED Display
• Flow Rate: 8.5 Gallons Per Minute
• Maximum Temperature: 140 Degrees Fahrenheit
• Efficiency: 0.82
• Maximum Pressure: 150 Pound per Square Inch
• Mount Type: Wall
• Is Electric: No
• Model: RE180e
