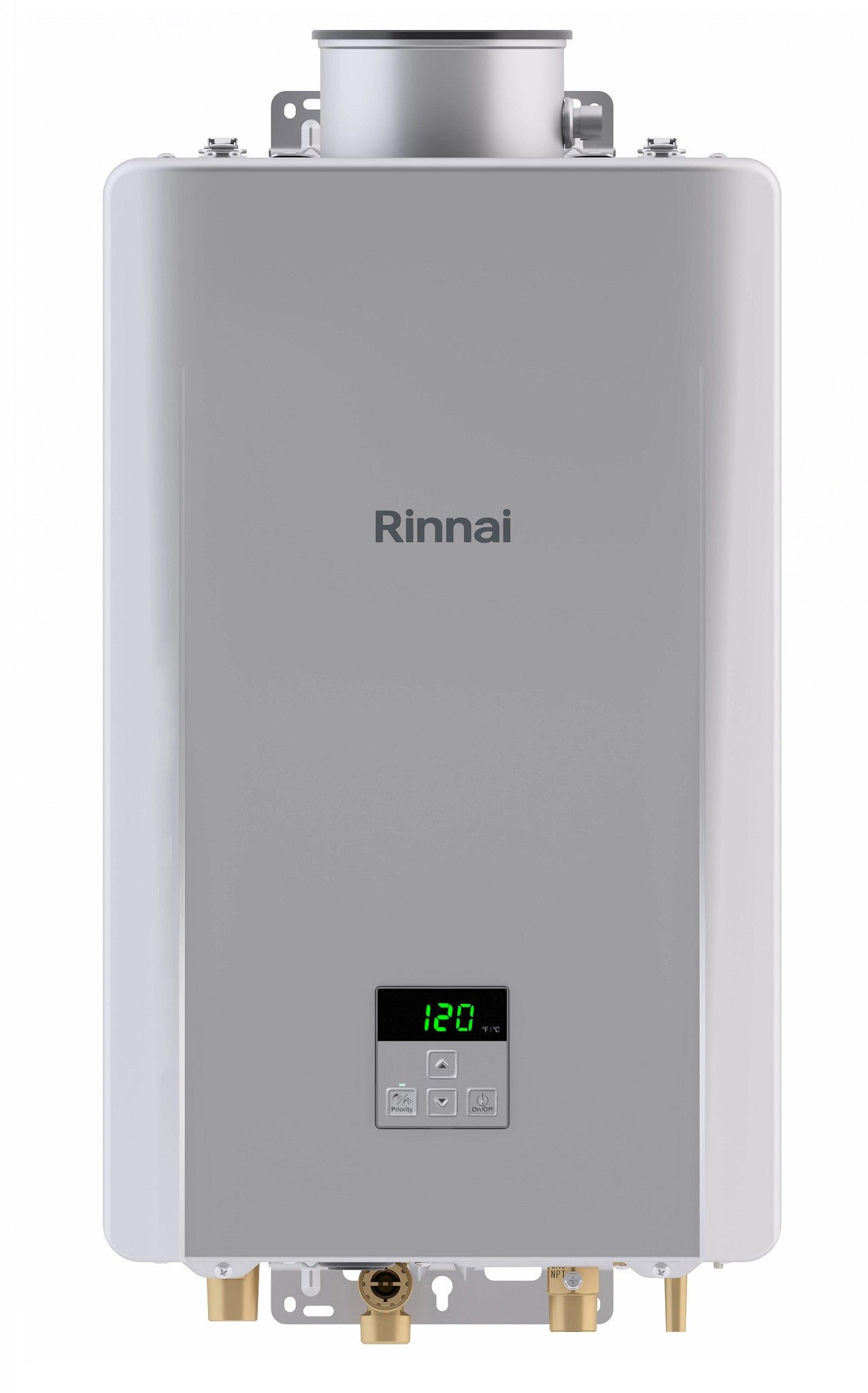

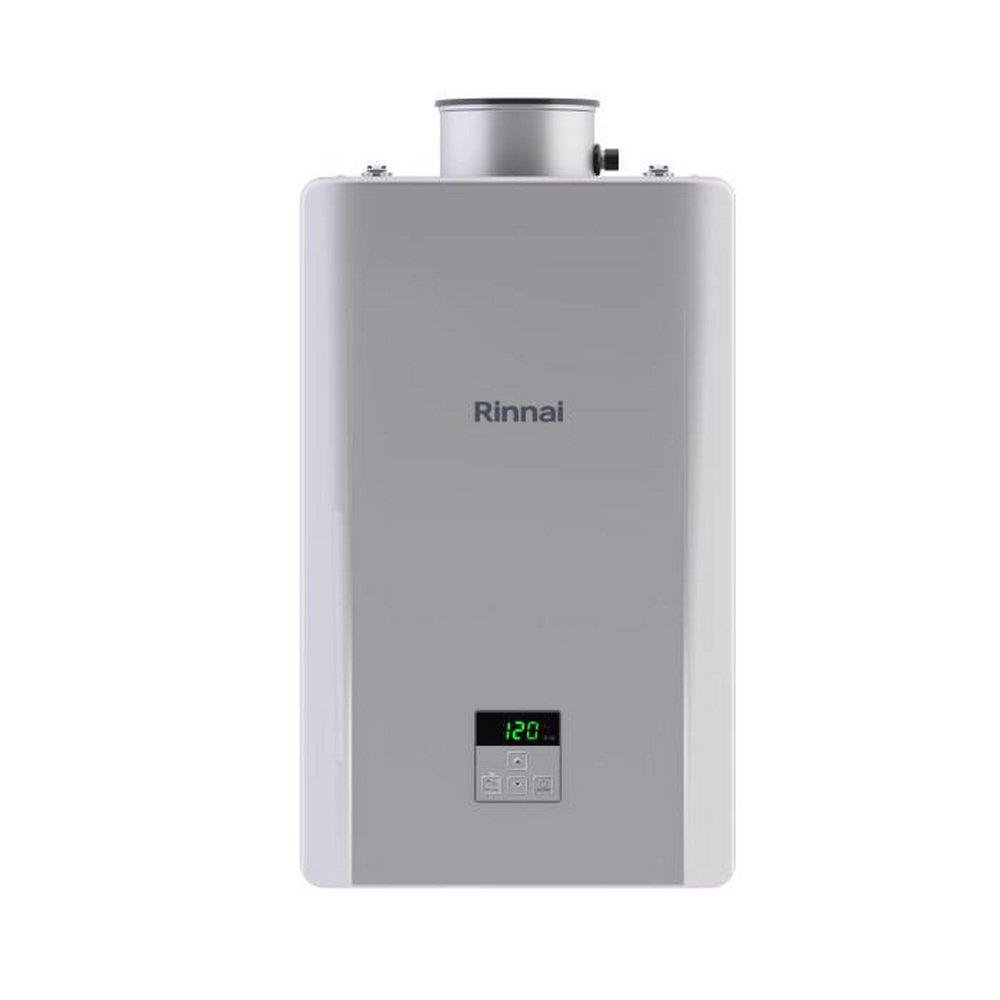

Rinnai RE160IP RE Series Residential 160,000 BTU Liquid Propane Tankless Water Heater Concentric Vent

Product Description

The Rinnai RE160IP from the RE Series raises the bar in tankless heating technology, offering a combination of comfort and value. With a 0.81 Uniform Energy Factor and sleek design, this tankless water heater provides continuous hot water for multiple applications. It is easily maintained and Wi-Fi compatible for remote monitoring and management.

• Provides continuous hot water for multiple applications without interruption.
• Saves energy by only heating water when needed, avoiding wasted energy from a standing pilot light.
• Compact design allows for installation on any wall or in compact spaces.

Product Highlights

The RE160IP is ideal for residential use, providing high efficiency and endless hot water.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: RE160IP

Technical Specifications

• Fuel Type: Liquid Propane
• Installation Location: Indoor
• Type: Tankless Water Heater
• Product Depth: 10.77 Inches
• Product Width: 14.04 Inches
• CSA Listed: Yes
• Product Height: 24.65 Inches
• Frequency: 60 Hz
• Medium: Hot Water
• Cold Water Inlet: 3/4 Inch
• Hot Water Outlet: 3/4 Inch
• NSF Certified: Yes
• AHRI Certified: Yes
• Vent Type: Concentric Vent
• Minimum Flow Rate: 0.4 GPM
• Gas Connection Size: 3/4 Inch
• Mount Type: Wall
• Application: Residential
• Product Line: RE Series
• Storage Type: Tankless
• Includes Pump: No
• Uniform Energy Factor: 0.81
• Maximum Input Capacity: 160000 BTU
• Minimum Input Capacity: 10400 BTU
• Combustion Type: Non-Condensing
• Ultra Low NOx Emissions: Yes
• Parts Warranty: 5 Years
• AHRI Reference Number: 208210668
• Maximum Altitude: 10200 Feet
• Product Category: Water Heater – Tankless
• Product Sub-line: High Efficiency (HE)
• Venting Category: III
• Gas Conversion Kit: Not Available
• Heat Exchanger Warranty: 15 Years
• Flow Rate at 40F Temperature Rise: 6.6 GPM
• Flow Rate at 45F Temperature Rise: 5.9 GPM
• Flow Rate at 50F Temperature Rise: 5.3 GPM
• Flow Rate at 60F Temperature Rise: 4.4 GPM
• Flow Rate at 70F Temperature Rise: 3.8 GPM
• Phase: 1
• Voltage: 120 Volts
• Installation Type: Indoor Only
• Wi-Fi Capable: Yes
• Gas Type: Propane Gas
• Recirculation Capable: Yes
• Uniform Energy Factor (UEF): 0.81
• BTU (minimum): 10400
• BTU (maximum): 160000
