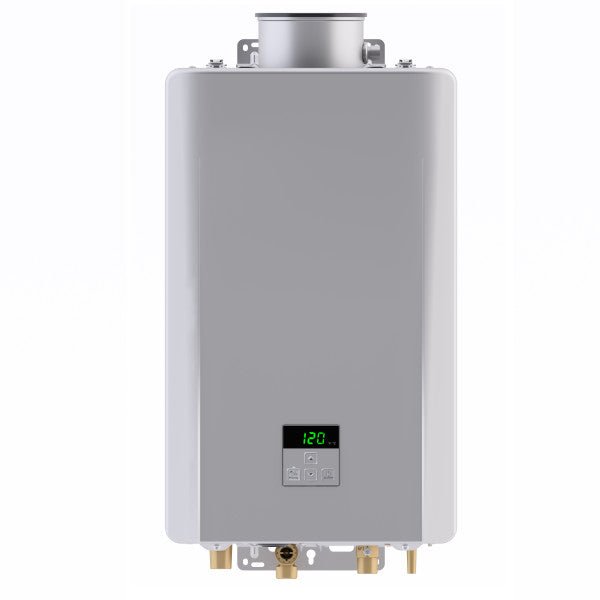

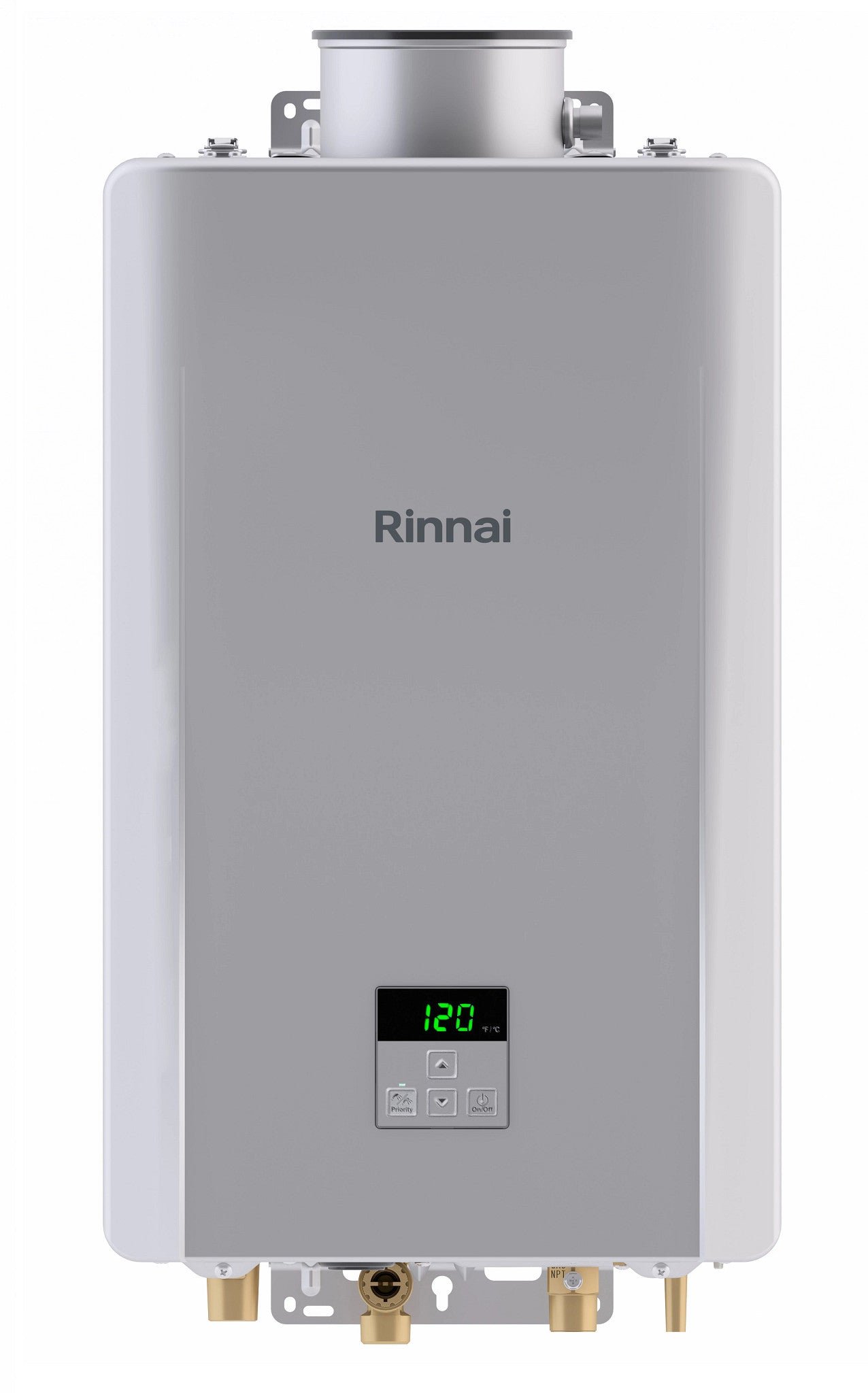

Rinnai RE160i Non-Condensing Indoor Tankless Water Heater 160,000 BTU (Natural Gas)

Product Description

The Rinnai RE160i is a natural gas, non-condensing tankless water heater, delivering high efficiency, comfort, and value. Suited for small to medium homes, it’s compact and easy to install indoors. It features a Uniform Energy Factor of 0.81 and a BTU range of 10,400 to 160,000. This unit provides hot water on demand with a flow rate of 0.4 – 7.4 GPM.

• Ideal for indoor installation only.
• Provides a temperature range of 120°F to 140°F.
• Offers Wi-Fi capability for remote monitoring with optional module.

Product Highlights

Provides endless hot water with high efficiency and easy installation for residential applications.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: RE160i

Technical Specifications

• Temperature Range (F): 120°F to 140°F
• Product Type: Tankless Heater
• Installation Type: Indoor Only
• Fuel Type: Natural Gas
• Energy Star Rated: No
• BTU (Min): 10400
• BTU (Max): 160000
• Energy Factor: 0.81
• Flow Range (GPM): 0.4 – 7.4
• Voltage: 110-120V
• Cold Water Inlet (NPTM): 3/4″
• Hot Water Outlet (NPTF): 3/4″
• Gas Connection: 3/4″
• Depth (Inches): 10.77″
• Height (Inches): 24.64″
• Width (Inches): 14.05″
• Flow Rate at 50F Temp Rise (GPM): 5.3
• Flow Rate at 60F Temp Rise (GPM): 4.4
• Vent Type: Concentric
• Flow Rate at 70F Temp Rise (GPM): 3.8
• Flow Rate at 40F Temp Rise (GPM): 6.6
• Type: Non-Condensing
• Application: Residential
• Uniform Energy Factor (UEF): 0.81
• Recirculation Capable: Yes
• Wi-Fi Capable: Yes
• Product Use: Residential Only
• Energy Star: No
• Condensing: No
• Built-In Re-Circulation Pump: No
• Connectivity: Yes, Module Available (Optional)
• Mobile Home Certified: Yes
• Temperature Setting Range: 120°F – 140°F
• Minimum Gas Consumption (BTUs): 10400
• Maximum Gas Consumption (BTUs): 160000
• Thermal Bypass Valve: No
• Isolation Valve: Optional (sold separately)
• Venting: 3″/5″ Concentric
• Water Connection Size: 3/4″ NPT
• Amps: 4
• Circuit Breaker Amps: 10
