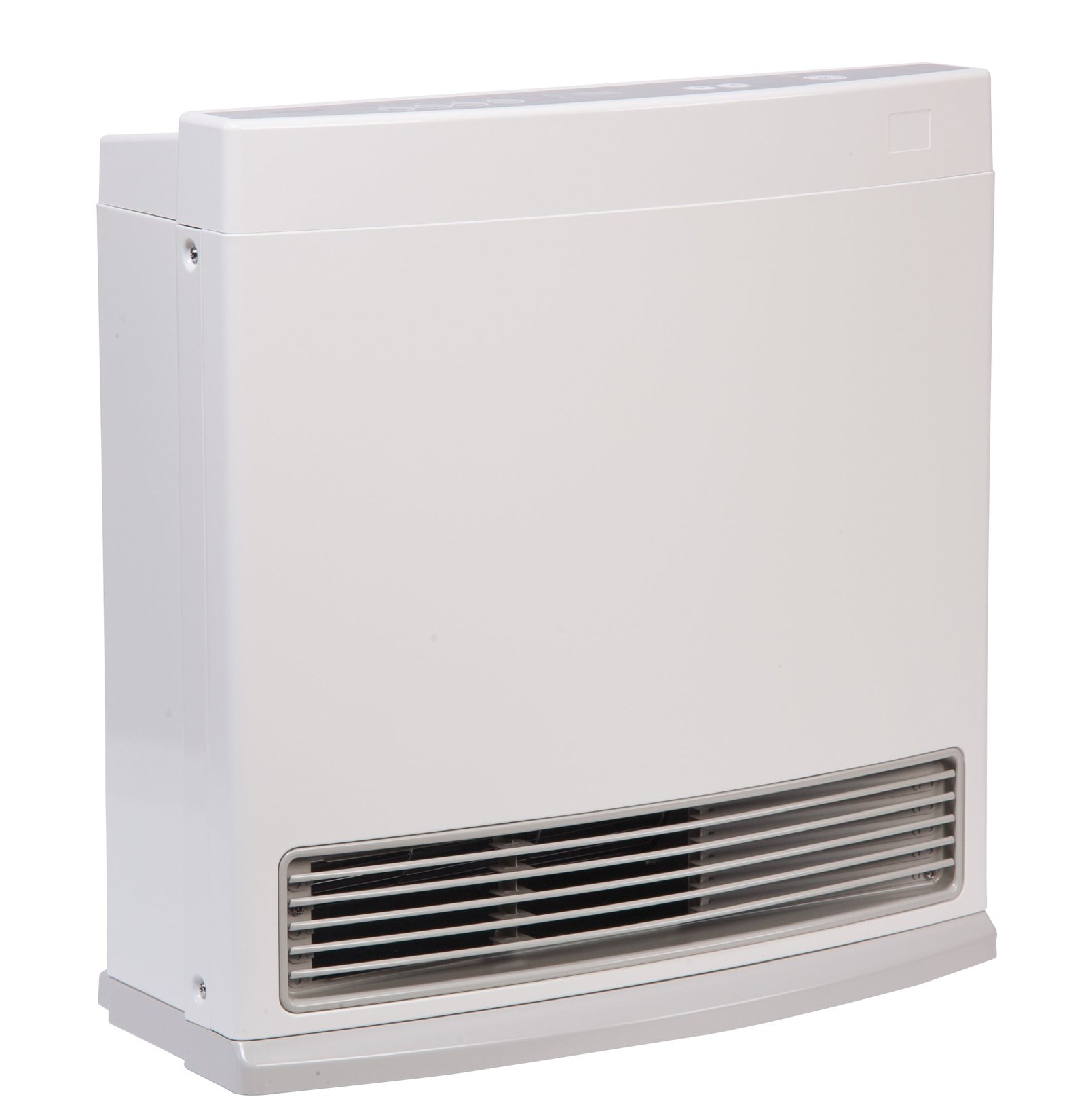

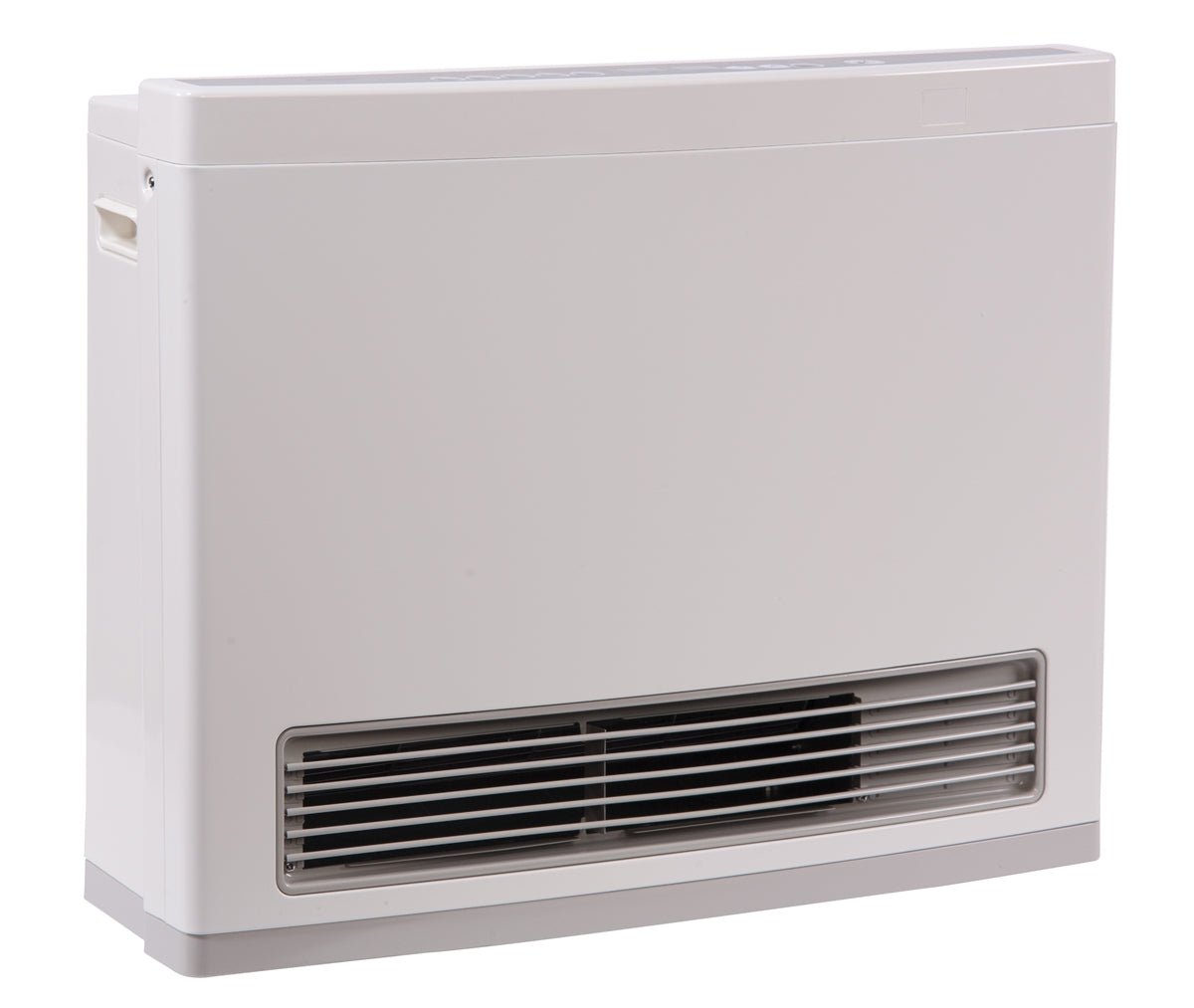

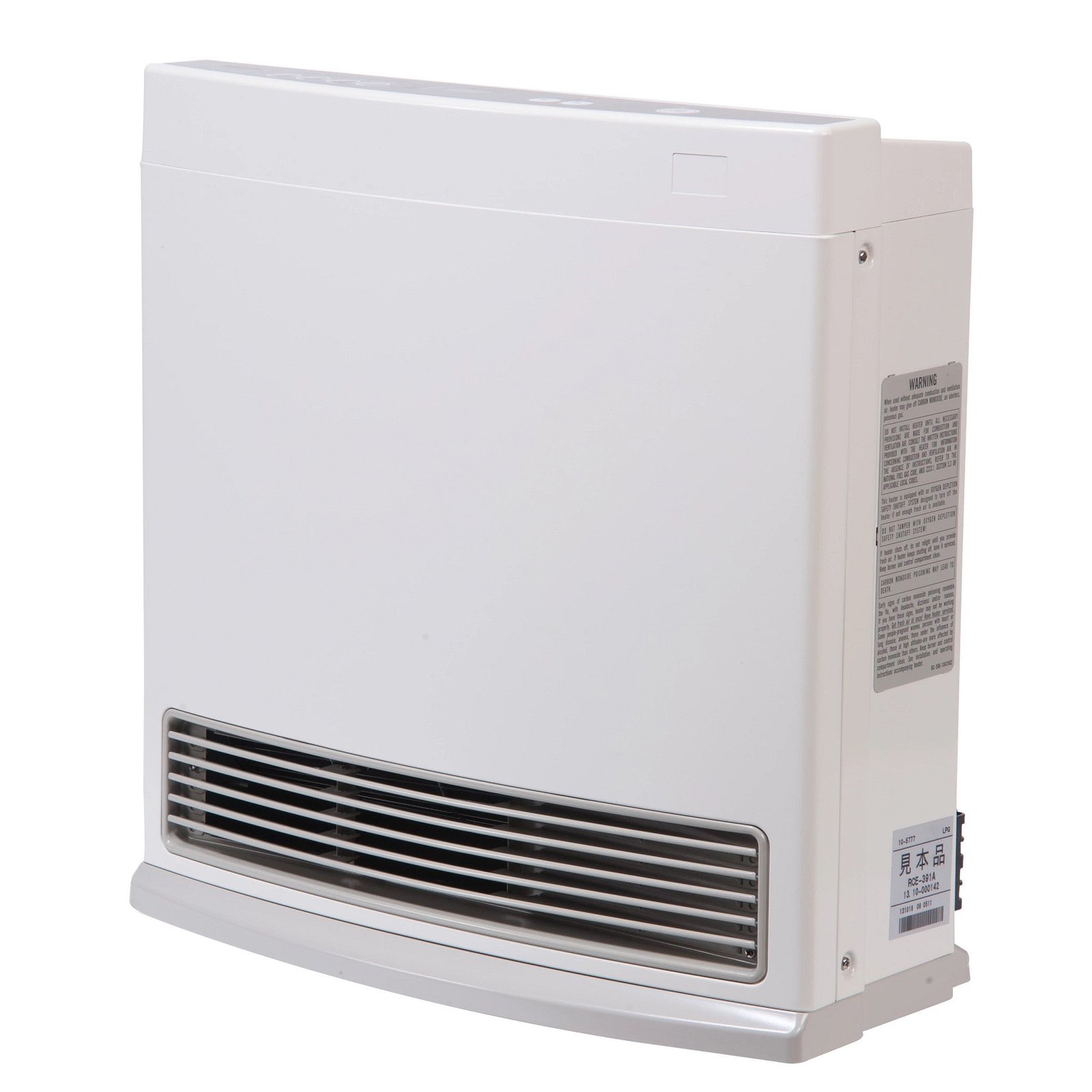

Rinnai FC510N Space Heater with Fan Convector, Natural Gas

Product Description

The Rinnai FC510N space heater with fan convector uses natural gas. This vent-free heater is suitable for homes, apartments, and condominiums, in residential or commercial settings. It is also approved for modular/mobile homes, and features forced combustion and forced convection. It is designed for professional installation in nearly any space.

• Space Heater
• Fan Convector
• Natural Gas
• 99.9% Efficient
• Cool-To-The-Touch Cabinet

Product Highlights

This natural gas space heater is vent-free and easy to install. It is a supplemental heating solution for room additions, basements, and sunrooms.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: FC510N
• Country of Origin: Japan

Technical Specifications

• Color: Beige
• Voltage: 110-120V
• Mounting Type: Floor Mount
• Indoor/Outdoor Usage: Indoor
• Product Dimensions: 9.4″D x 24″W x 19″H
• Approval: CSA (US), ANSI Z21.11.2
• Control Type: Electronic Thermostat
• Heating Capacity: 10000 BTU/Hour
• Power Rating: 19 Watt
• Type: Natural Gas, Indoor, Vent-Free, Cool-To-The-Touch
• Voltage Rating: 120 Volt AC 60 Hertz
• Series/Model: FC510
• Brand: Rinnai
• MPN: FC510N
• BTU: 10000
• BtuH: 10,000
• Features: Input Range 5,500 – 10,000 BTU/hr
• Gas Type: Natural Gas
• Mounting: Wall
• Standards: CSA, Energy Star, Mobile Home Certified
• Vent Type: Vent Free
• Gas Connection: 1/2″ FNPT
• Additional Features: Ideal supplemental heating solution for room additions, basements, and sunrooms (Heating area varies by geographic region and location of install within the home)
• Residential / Commercial: Residential / Commercial
• Country of Origin (subject to change): Japan
• Product Type: Fan Convector
• Fuel: Natural Gas
• BTU Input: 10K BTU
• Size: 19×19-1/2×9-1/2IN
• Venting: Vent-Free
• Efficiency: 99.9%
• Frequency: 60HZ
• Finish: White
• Ignition Type: Electronic Pushbutton
• Inlet Connection: 1/2IN NPT
• Safety Features: Overheat Switch/Flame Failure Device/Oxygen Depletion Sensor/Tilt Switch/Child Safety Lock
• Shipping Weight: 26.500 LBS
• UPC: 76615600813
• Manufacturer: Rinnai
• Model / MPN: FC510N
• Number of Items: 1.0
• Product Group: Home Improvement
• Wattage [Features]: 25
• Fuel Type [Features]: Natural Gas
• Depth (Inches) [Features]: 9-3/5″
• Connection Type [Features]: MNPT
• Height (Inches) [Features]: 19.4″
• Air Flow Capacity (CFM) [Features]: 97.8
• Product Depth: 9.6 in / (244 mm)
• Product Height: 19.4 in / (492 mm)
• Product Width: 19.2 in / (487 mm)
• Product Weight: 22.1 lb / (10 kg)
• Central Heating Capacity: 10,000 BTU / (2.9 kW)
• Minimum BTU: 5500
• Maximum BTU: 10,000
• Amperage: 0.16 Amps
• Material: Plastic
• Item Package Quantity: 1
• Number Of Pieces: 1
• Included Components: Heater
• Batteries Included?: No
• Batteries Required?: No
• Installation Type: Floor or Wall Mount
• Fuel Type: Choice NG / LP
• Installation Kit: Wall and Floor Stand Kits Included
• Type of Venting: Vent Free
• Tilt Switch: Yes
• Heating BTUs: 10000
• CFMs: 67.8 / 97.8 (L / H)
• Blower: Convection Fan
• Flame Type: Burner
• Manifold Pressure (in.): 1.8″ w.c. (NG) / 3.2″ w.c. (LP)
• Inlet Gas Pressure (Min.): 3.5″ w.c. (NG) / 8.0″ w.c. (LP)
• Inlet Gas Pressure (Max.): 10.5″ w.c. (NG) / 13.0″ w.c. (LP)
• Top to Ceiling (in.): 2
• Bottom to Floor (in.): 0
• To Side Wall (in.): 2
• Width (in.): 19.2
• Depth (in.): 9.6
• Height (in.): 19.4
• Net Weight (lbs.): 22.1
• Certifications: CSA
• Part Number: Fc510N
• Model Number: Fc510N
• Heat Output: 10000.0
• Model Name: Fc510N
• Heating Coverage: Approx 150-200 Square Feet
• Customer Package Type: Standard Packaging
• Heating Element Type: Radiant
• Heating Method: Forced Air
• Power Source Type: Natural Gas
• Has Automatic Shutoff: Yes
• Package Dimensions LxWxH: 28.7×27.1×18.9 Inches
• Voltage [Features]: 120v
• Depth (Inches): 9-3/5″
