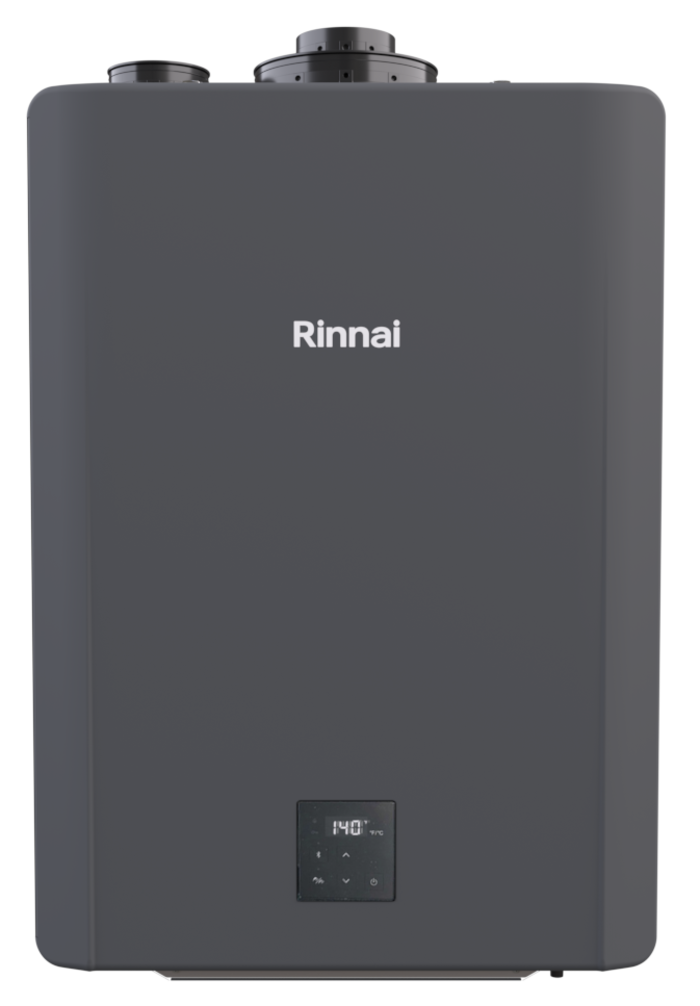

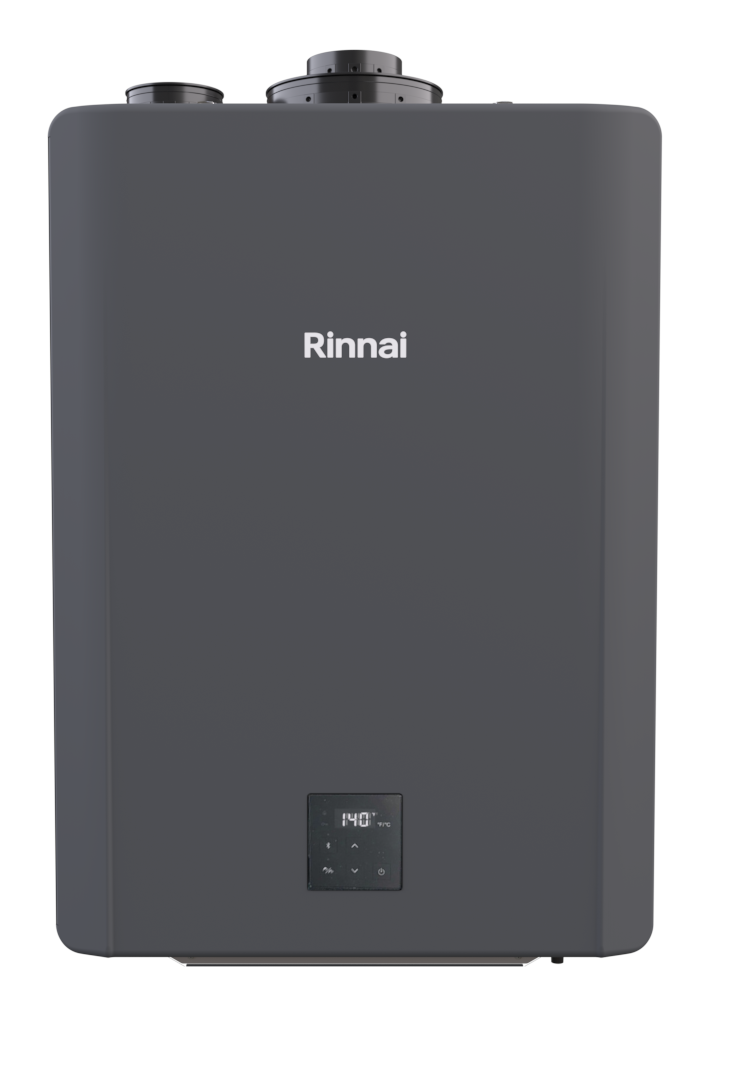

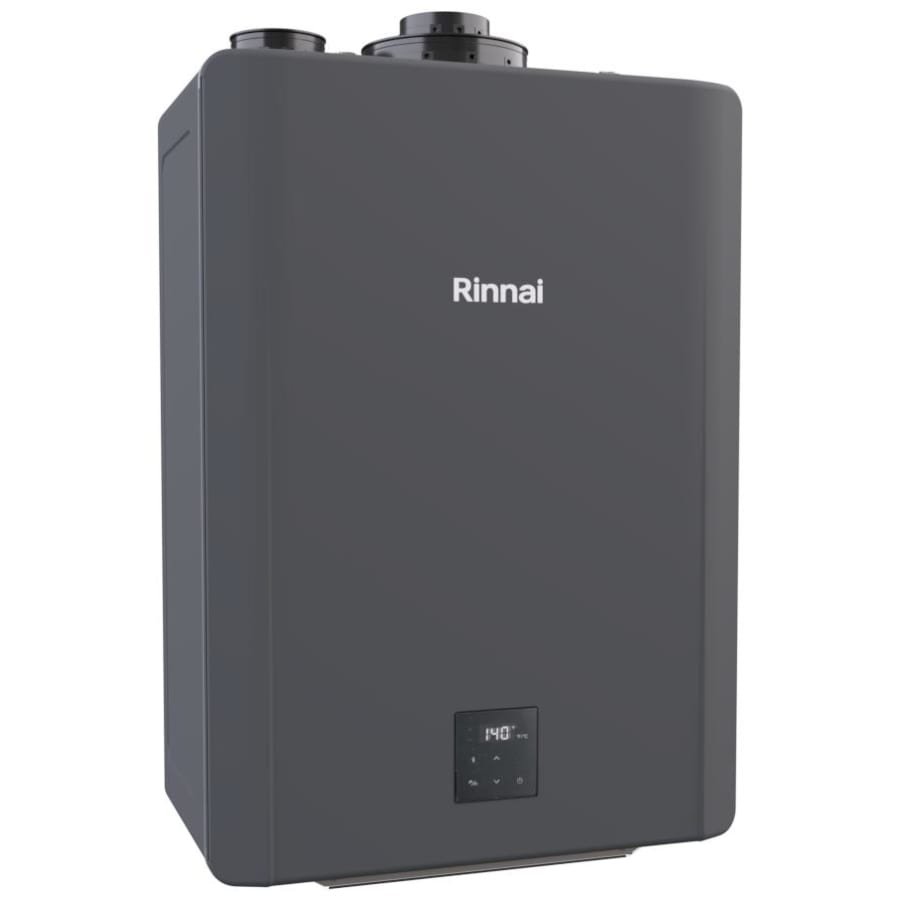

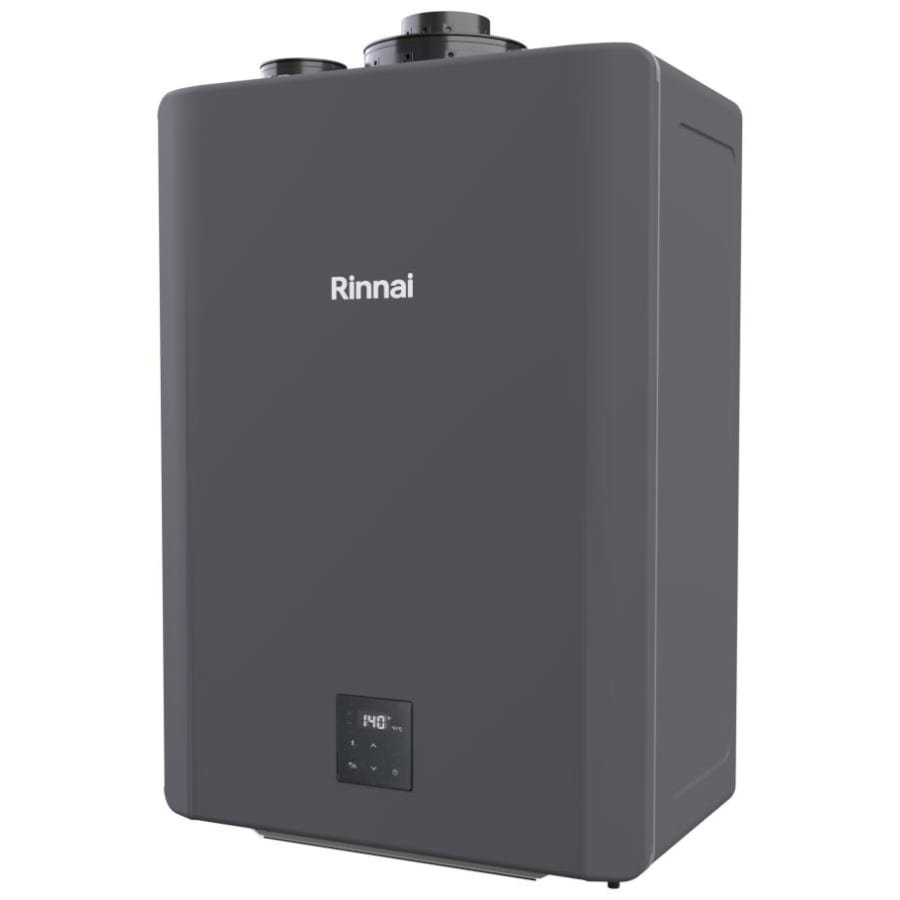

Rinnai CXP199iN CXP Model Series Commercial Tankless Water Heater 11 GPM

Product Description

The Rinnai CXP199iN CXP Model Series Commercial Tankless Water Heater is designed for commercial applications. It features direct electronic ignition and flexible venting options with 2″ venting up to 75 feet. Approved for high altitude up to 10,200 ft. The flow rate ranges from 0.13 to 11.0 GPM, with temperature settings from 98 to 140°F.

• Flow rate of 0.13 – 11.0 GPM
• Available temperature settings range from 98 to 140°F
• Equipped with direct electronic ignition

Product Highlights

This Energy Star certified tankless water heater has a Uniform Energy Factor of 0.98 and Smart-Sense adaptive gas valve technology.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: CXP199iN
• Country of Origin: Japan

Technical Specifications

• Model: CXP199iN
• Brand: RINNAI
• Width: 18-1/2″
• Height: 30-1/8″
• Depth: 11-3/8″
• Fuel Type: Natural Gas
• Gas Connection: 3/4″
• Connection Size: 3/4″
• Water Pressure (Min): 15 PSI
• Water Pressure (Max): 150 PSI
• Temperature (Min): 98°F
• Temperature (Max): 140°F
• Voltage: 120V
• Activation GPM: 0.26
• Duct Size: 2″ Round, 3″ Round, 4″ Round, 5″ Round
• Maximum Flow Rate: 11 GPM
• Maximum Gas Input: 199000 BTU
• Minimum Flow Rate: 0.5 GPM
• Minimum Gas Input: 15000 BTU
• Water Connection: 3/4″
• Power Source: Natural Gas
• Wattage: 98 watts
• Efficiency: 96%
• Mounting Type: Wall
• Is Electric: No
• Manufacturer: Rinnai America Corporation
• UPC: 766156017322
• Part Number: CXP199iN
• Item model number: CXP199iN
• Size: 11 GPM
• Item Package Quantity: 1
• Batteries Required?: No
• Type: Tankless Water Heater
• Product Line: Sensei
• Product Sub-line: Super High Efficiency
• Product Category: Water Heater – Tankless
• Medium: Hot Water
• Combustion Type: Condensing
• Vent Type: Direct Vent
• Venting Category: IV
• Storage Type: Tankless
• Application: Commercial
• Installation Location: Indoor
• Maximum Altitude: 10200 Feet
• Includes Pump: Yes
• Gas Conversion Kit: Not Required
• Subscription Eligible: No
• Maximum Input Capacity: 199000 BTU
• Minimum Input Capacity: 15000 BTU
• Flow Rate at 40F Temperature Rise: 9.8 GPM
• Flow Rate at 45F Temperature Rise: 8.6 GPM
• Flow Rate at 50F Temperature Rise: 7.8 GPM
• Flow Rate at 60F Temperature Rise: 6.4 GPM
• Flow Rate at 70F Temperature Rise: 5.4 GPM
• Uniform Energy Factor: 0.98
• Ultra Low NOx Emissions: Yes
• Phase: 1
• Frequency: 60 Hz
• Primary Vent Pipe Diameter: 2 Inches
• Gas Connection Size: 3/4 Inch
• Cold Water Inlet: 3/4 Inch
• Hot Water Outlet: 3/4 Inch
• Product Height: 30 5/48 Inches
• Product Width: 18 1/2 Inches
• Product Depth: 11 19/48 Inches
• Shipping Weight: 68 Pounds
• Energy Star Listed: Yes
• CSA Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 214067920
• Parts Warranty: 5 Years
• Heat Exchanger Warranty: 8 Years
• Thermal Efficiency: 97%
• Venting Options: Concentric or Schedule 40 PVC/CPVC or PP. Twin pipe 2 in. (51mm) vent lengths up to 74 ft. (23 m) or 3 in. (76mm) up to 150 ft. (46 m). Common Vent lengths up to 150 ft (46m) with eight tankless water heater units.
• Recirculation Pump: Internal 4-speed DC recirculation pump
• Installation Type: Indoor or Outdoor
• Product Use: Commercial Only
• Gallons Per Minute (GPM): 0.13 – 11.0
• Temperature Setting Range: 98°F – 140°F
• Minimum Gas Consumption (BTUs): 15000
• Maximum Gas Consumption (BTUs): 199000
• Thermal Bypass Valve: No
• Isolation Valve: Included
• Venting: 2″ PVC or 3″ / 5″ Concentric
• Water Connection Size (in.): 3/4″ NPT
• Overall Depth (in.): 11.4
• Overall Height (in.): 25.75
• Overall Width (in.): 18.5
• Weight (lbs.): 64
• Amps: 4
• Circuit Breaker Amps: 10
