Navien NAA-17V36 Variable-capacity Air Conditioner 2-3 Ton (NAA17V36)

Product Description

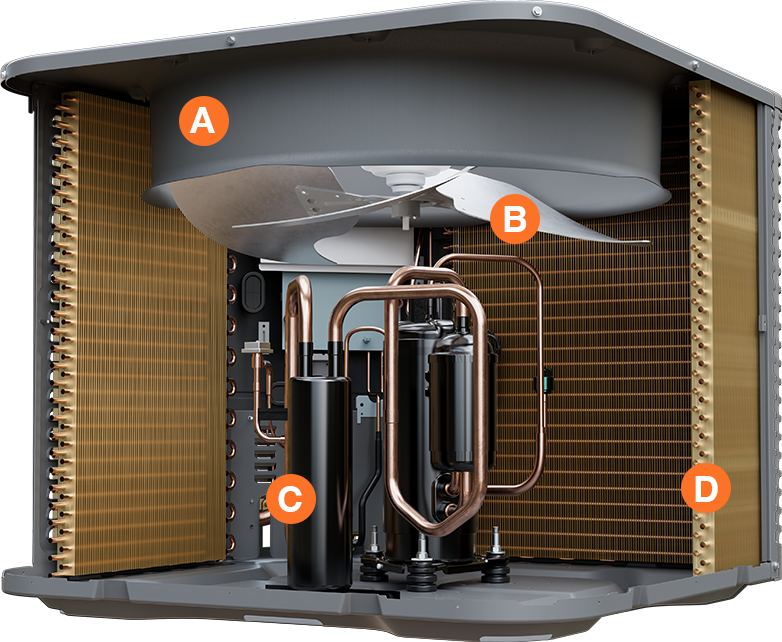

The Navien NAA-17V36 is a variable-capacity air conditioner with an inverter-driven rotary compressor that provides 2–3 ton cooling capacity and uses R-454B refrigerant. The unit supports up to 18 SEER2 with select AHRI-matched indoor equipment and an EER2 up to 11.5. It operates on 230 V, 1 phase, 60 Hz, includes a DC fan motor, four independent louvered coil access panels, and measures 29.1 x 25.0 x 29.1 inches.

• Inverter-driven rotary compressor with 18–78 Hz operating range; compressor RLA 12.8 A, LRA 52 A.
• Cooling capacity 2–3 ton; refrigerant R-454B with 111.1 oz (3,149.6 g) charge; SEER2 up to 18 (with AHRI-matched indoor equipment).
• Electrical input 230 V / 1 phase / 60 Hz (operating range 187–253 V); minimum circuit ampacity 20 A; max overcurrent protection 30 A; DC fan motor 1/4 HP, 1.8 A, 1,100 RPM; sound rating 78 dBA.

Product Highlights

Variable-speed inverter compressor; R-454B refrigerant; Up to 18 SEER2 with select AHRI-matched indoor equipment.

Product Information

Standard Information

• Brand: NAVIEN
• Manufacturer Part Number: NAA-17V36

Technical Specifications

• Brand: Navien
• Manufacturer Part Number: NAA-17V36
• Model: NAA17V36
• Product Type: Air conditioner (outdoor condensing unit)
• Cooling Capacity: 2–3 Ton
• SEER2: Up to 18 (with select AHRI-matched indoor equipment)
• EER2: Up to 11.5
• Refrigerant Type: R-454B
• Refrigerant Charge: 111.1 oz (3,149.6 g)
• Dimensions: 29.1″ x 29.1″ x 25.0″ (L x W x H) / 74.0 cm x 74.0 cm x 63.5 cm
• Net Weight: 137 lbs (62.1 kg)
• Gross Weight: 166 lbs (75.3 kg)
• Sound Rating: 78 dBA
• Input Voltage: 230 V / 1 phase / 60 Hz
• Operating Voltage Range: 187–253 V
• Minimum Circuit Ampacity: 20 A
• Max Overcurrent Protection: 30 A
• Compressor Type: Inverter driven rotary
• Compressor Frequency Range: 18–78 Hz
• Compressor Rated Current (RLA): 12.8 A
• Compressor LRA: 52 A
• Fan Motor Type: DC
• Fan Motor RLA: 1.8 A
• Fan Motor Max Speed: 1,100 RPM
• Fan Motor Power: 1/4 HP
• Coil Rows: 2
• Coil Tube Outside Diameter: 9/32″
• Coil Tube Pitch x Row Pitch: 0.83 in x 0.53 in (21.1 mm x 13.5 mm)
• Coil Net Face Area: 13.75 sq ft
• Liquid Line OD: 3/8″ (9.5 mm)
• Vapor Line OD: 3/4″ (19 mm)
• Max Line Length: 100 ft
• Max Vertical Lift: 50 ft
• Operating Temperature (Cooling): 5–124 °F
• Access Panels: Four independent louvered coil access panels
• Coil Finish: Gold coat (copper tubes with coated fins)
• Fan Blade Type: Swept wing fan blades
• Suction Accumulator: Large suction accumulator
• Venturi: Deep drawn venturi for air movement
