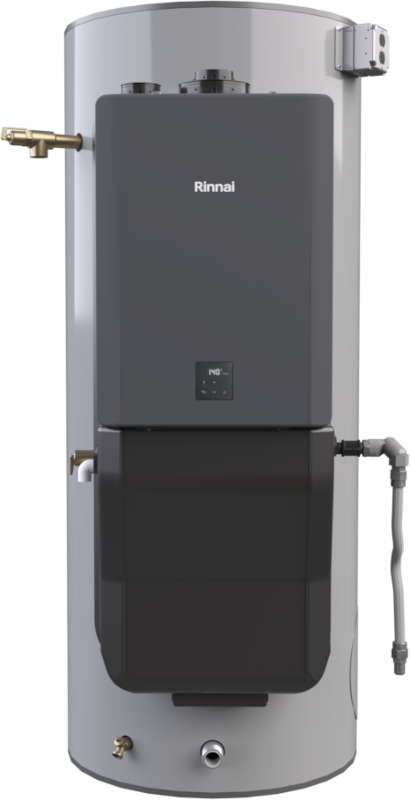

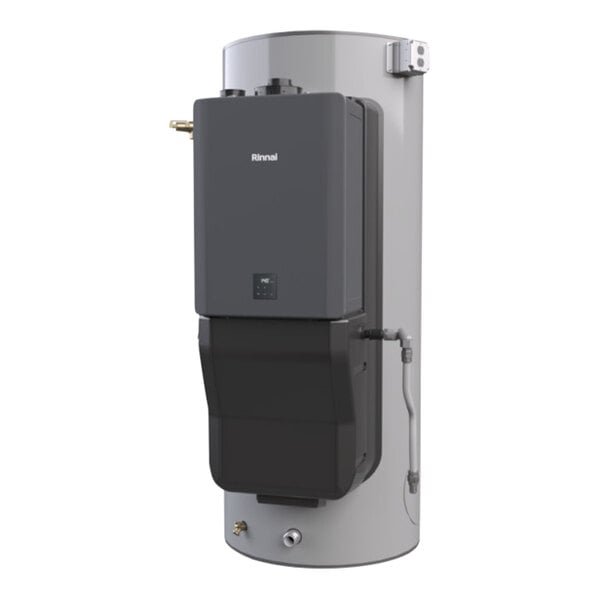

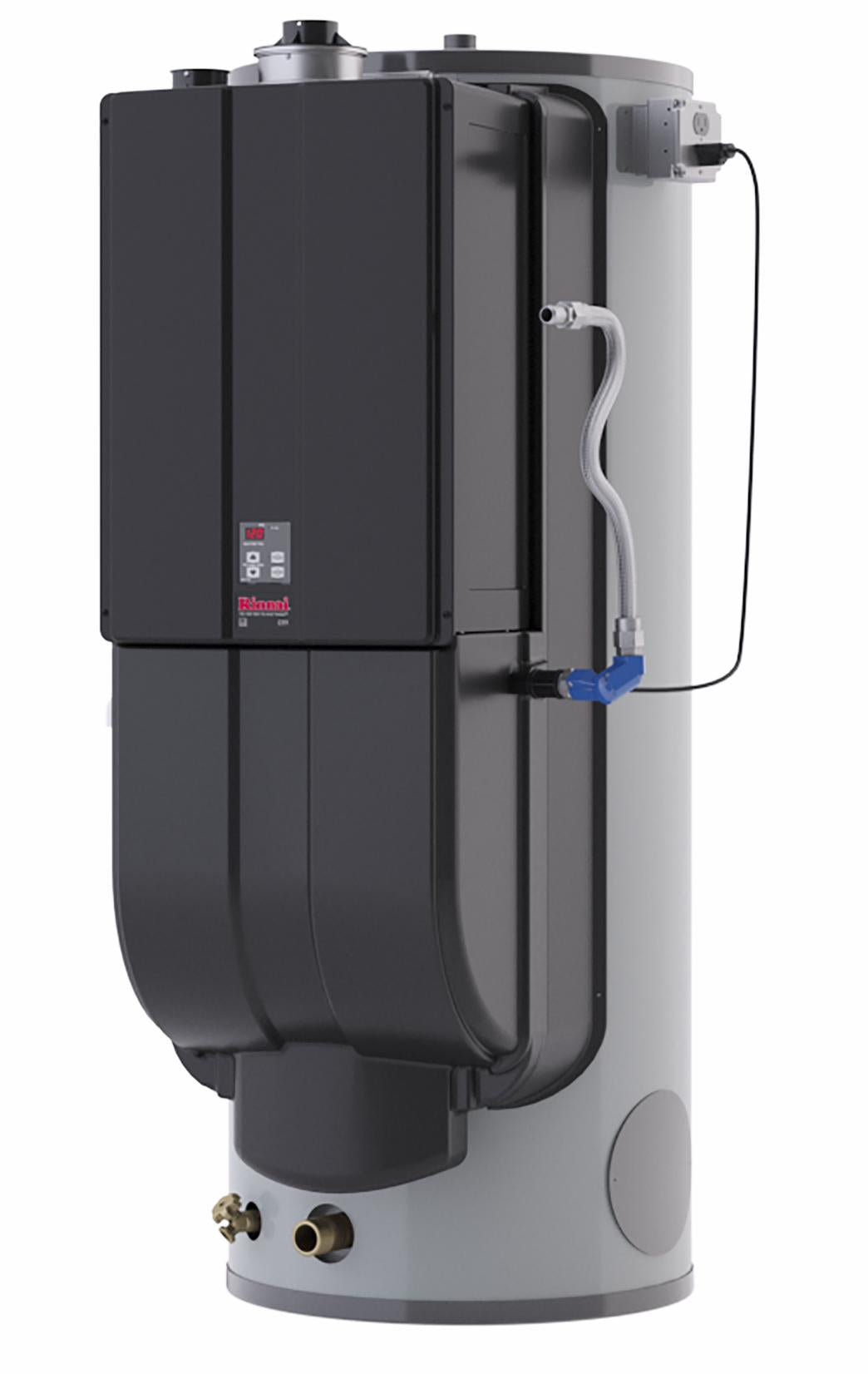

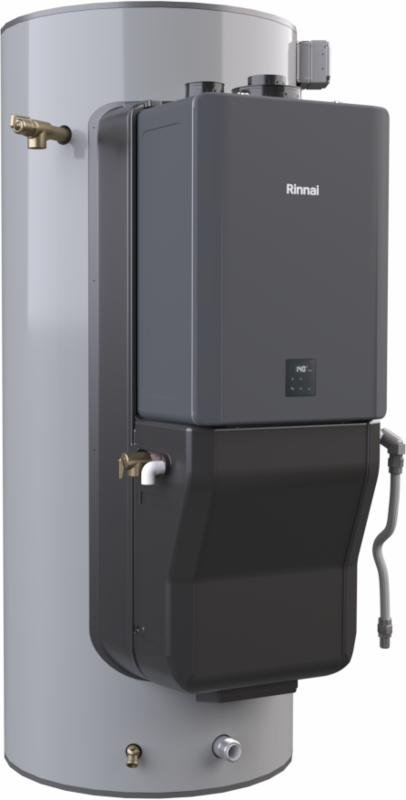

Rinnai CHS199100HCXIN Hybrid Water Heating System 199000 BTU/hr 100 gal

Product Description

The RINNAI CHS199100HCXIN Hybrid Water Heating System features hybrid technology ensuring a longer service life. This system produces abundant hot water for peak commercial hours. It has a minimum BTU of 15,000 and a maximum BTU of 199,000. The system is for indoor installation and is recirculation and Wi-Fi capable.

• Up to twice the lifespan of most tanks
• Never run out of hot water
• Compact size to fit every space

Product Highlights

This hybrid water heating system provides reliable hot water with high-performance and high-efficiency, reducing the cost of ownership.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: CHS199100HCXIN
• Country of Origin: U.S.

Technical Specifications

• Brand: RINNAI
• MPN: CHS199100HCXIN
• Gas Type: Natural Gas
• Installation Type: Indoor
• Recirculation Capable: Yes
• Uniform Energy Factor (UEF): 0.98
• Wi-Fi Capable: Yes
• SCAQMD Approved: Ultra Low NOx
• Product Depth: 40 inch / (1016 mm)
• Product Height: 71 inch / (1803 mm)
• Product Width: 33 inch / (838 mm)
• BTU (per Hour): 199,000 BTU
• Tank Capacity: 119 Gallons
• Temperature Range: 98 – 185 Degrees F
• Type: Water Heaters
• Usage: Indoor
• Amps: 5.5 Amps
• Hertz: 60 Hz
• Phase: 1 Phase
• Voltage: 120 Volts
• Flow Rate: 5.28 GPM
• Gas Connection Size: 3/4 Inches
• Maximum Pressure: 150 PSI
• Style: With Tank
• Water Inlet Size: 1 1/2 Inches
• BTU’s: 199000
• Capacity: 450 L
• Features-Water Heaters: Condensing
• Fuel Type: Natural Gas
• High Altitude?: true
• Tank Diameter: 28-5/16″
• Venting Style: Concentric Vent, Direct Vent, Non-Direct Vent
